  • Micropore gloss meter YG60M


  • LOADING IMAGES
    Micropore gloss meter YG60MMicropore gloss meter YG60MMicropore gloss meter YG60MMicropore gloss meter YG60M

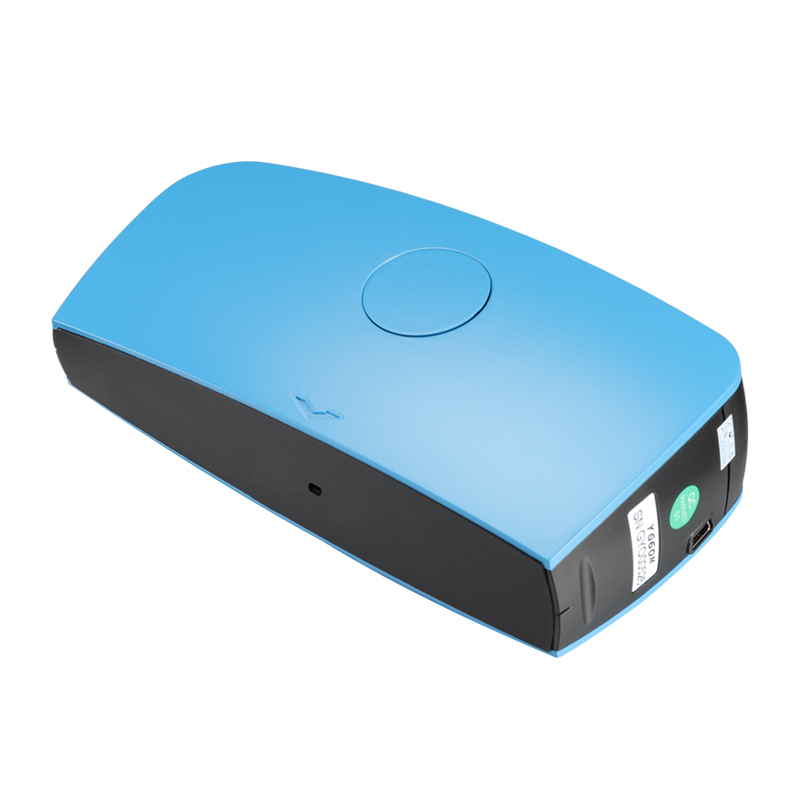

Micropore gloss meter YG60M is a high-precision small-aperture handheld gloss meter developed by 3nh , which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.



Product Features of Micropore High Precision Gloss Meter YG60M



1. Micropore design

It adopts an extremely small measuring aperture of 2 x4 mm , which is suitable for gloss detection of samples such as curved surfaces, irregular objects , and small objects , and has a wider range of applications.

 Micropore design

2. High measurement accuracy

The carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement , meeting the requirements of JJG 696 working gloss meter, with superior performance, which can fully match the test data of imported gloss meters.

High measurement accuracy

3. Multi-mode measurement

Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

Multi-mode measurement

4. Calibration function

Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

 Calibration function

5. Low power consumption

A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.

Low power consumption

6. Simple operation, easy to use

The instrument is easy to operate and can be used immediately after being turned on. Data can be locked with one button. No complicated settings are required and the measurement can be completed in 0.5 seconds.

Simple operation, easy to use

7. Lightweight and portable

The instrument is designed based on ergonomics, with a compact and beautiful appearance and a comfortable grip. It is not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

 Lightweight and portable

8. PC quality management software

The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.

PC quality management software



Micropore High Precision Gloss Meter YG60M Technical Parameters

Product number YG60M 60° Micropore High Precision Gloss Meter
Measuring Angles 60°
Measuring spot(mm) 60°:2X4
Measuring range 60°: 0~1000GU
Graduation value 0.1GU
characteristic It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode Basic mode, statistical mode, continuous mode, quality control mode
measure time 0.5 seconds
Repeatability 0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
accuracy Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time 30~120 seconds optional
Long time calibration Auto Identify Calibration Board and Calibrate / manual calibration
language Simplified Chinese, English, Traditional Chinese
Storing data 35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display 2.3 inch black and white display
size 160X52X84mm
weight About 300g (including calibration box and batteries)
power supply 1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port
interface USB
PC Software GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range 0~40°C (32~104°F)
Storage temperature range -20~50°C (-4~122°F)
humidity Less than 85% RH, no condensation
Standard accessories USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board
Optional accessories Micro printer, Bluetooth 5.0 adapter
Note The technical parameters are for reference only, please refer to the actual products sold
