  • NS800 Spectrophotometer


  • LOADING IMAGES

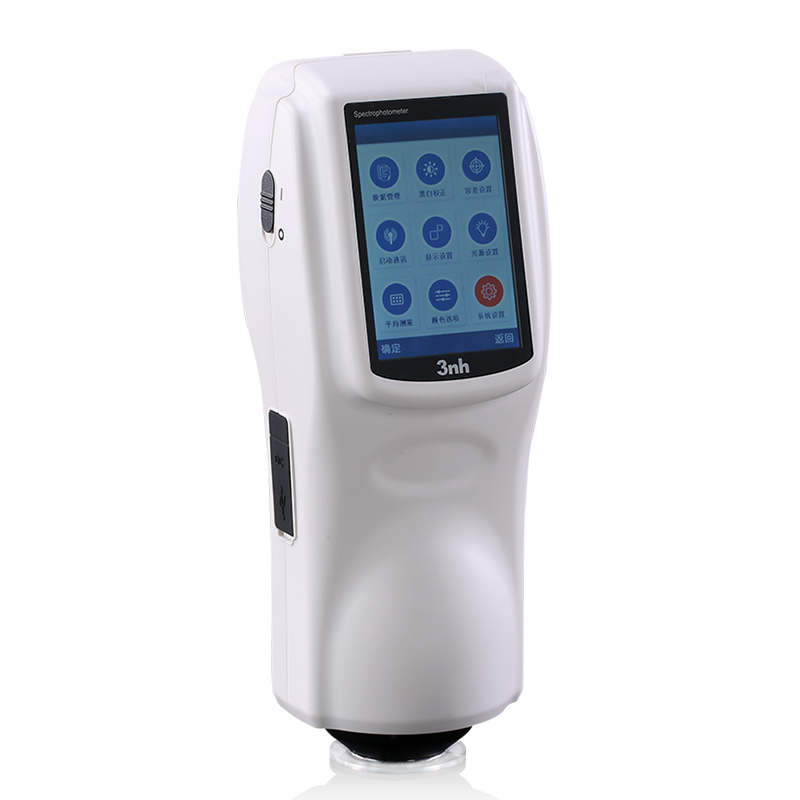

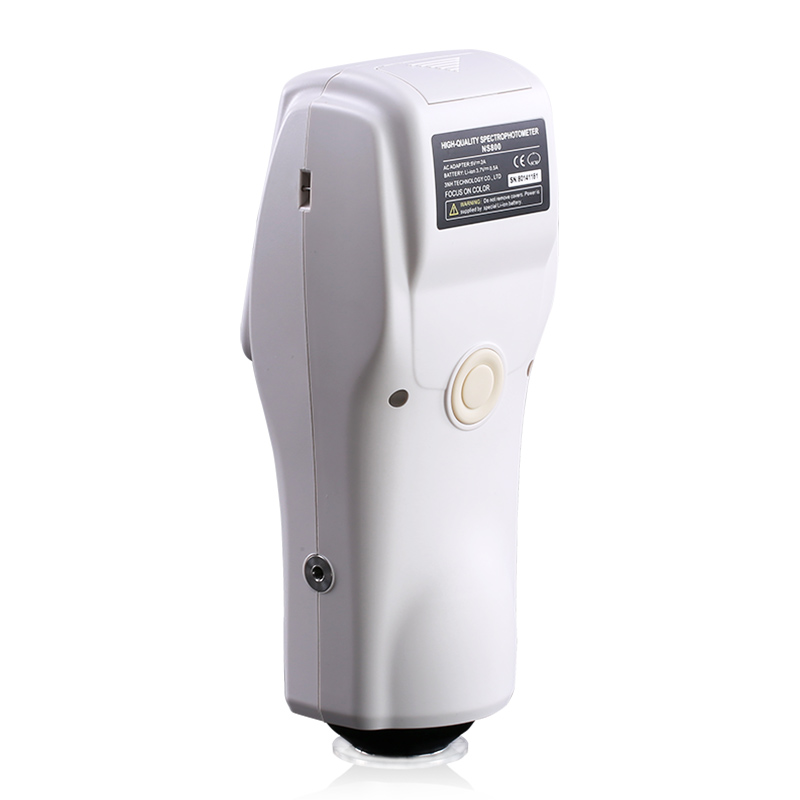

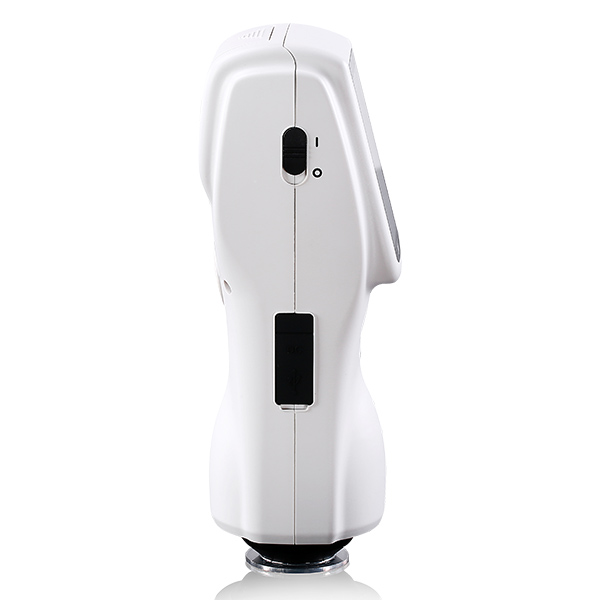

    NS800 SpectrophotometerNS800 SpectrophotometerNS800 SpectrophotometerNS800 SpectrophotometerNS800 Spectrophotometer

NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.


In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.


3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.

NS800 Spectrophotometer



Product Features

1. Aesthetic design perfectly combined with ergonomics structure.
2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
3. 3.5 inch large capacitive touch screen.
4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
6. Large capacity storage, can save more than 10000 data.
7. PC software with powerful extension functions.
8. High hardware configuration with a number of innovative technologies.
9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
10. 15° oblique angle screen, more in line with the human eye observation.

Application Industry

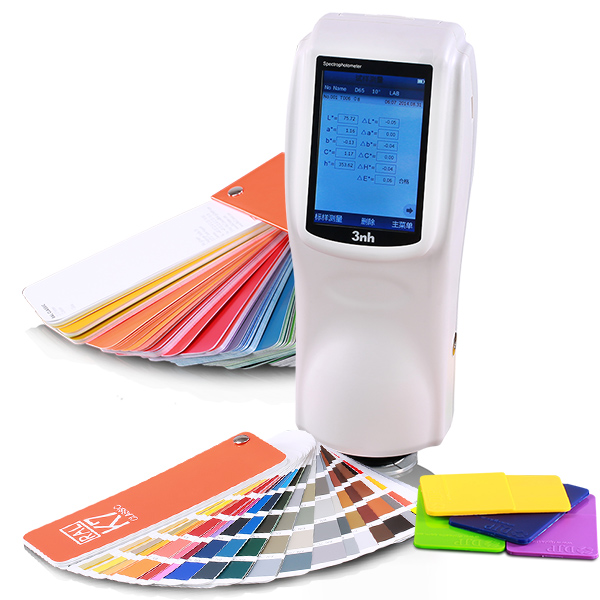

NS800 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.  It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

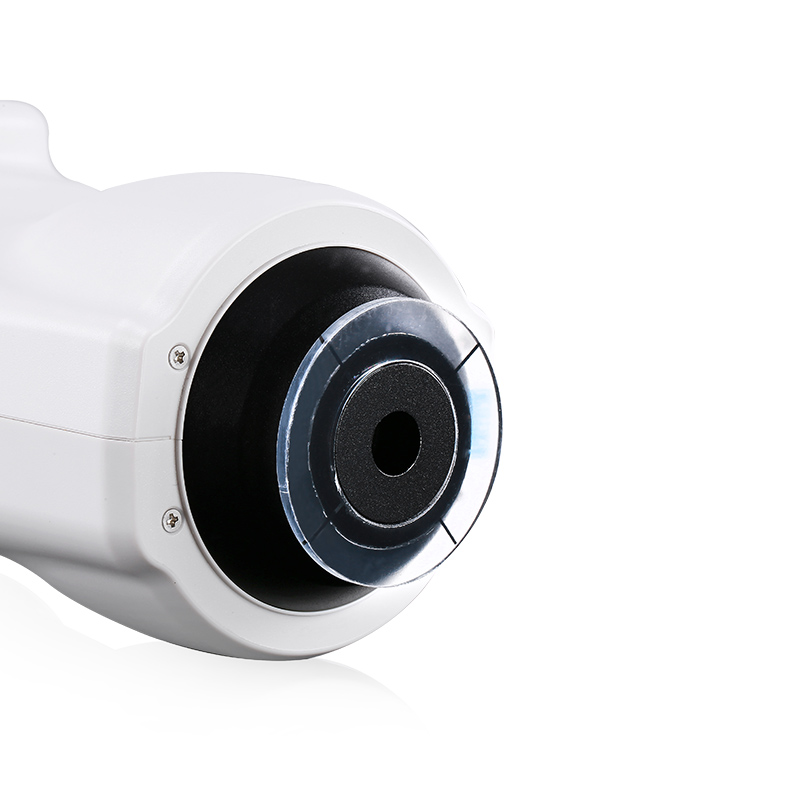

 Measuring Aperture



NS800 Spectrophotometer Specifications



 Model  NS800
 Illumination/observation system  45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15,GB/T 3978
 Integrating sphere Size  Φ58mm
 Light Source  combined LED sources
 Sensor  Silicon photodiode array
 Wavelength range  400~700nm
 Wavelength interval  10nm
 Reflectance range  0~200%
 Measuring Aperture  Φ8mm
 Color Space  CIE LAB,XYZ,Yxy,LCh,CIE LUV
 Color difference Formula  ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
 Other Chromaticity Data  WI(ASTM E313,CIE/ISO, AATCC, Hunter), YI(ASTM D1925,ASTM  313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt), Color Stain,  Color Fastness
 Observer  2°/10°
 Illuminant  D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
 Display Data  Spectral Value/Graph, Colorimetric Value, Color Difference  Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
 Measurement Time  1.5s
 Repeatability  Spectral Reflectance: standard deviation within 0.1%(400~700nm:  within 0.2%)
 Colorimetric Value  Standard deviation within Delta E*ab 0.04 (Measurement conditions:  white calibration plate measured 30 times at 5 seconds intervals after  white calibration was performed.)
 Inter Instrument Agreement  Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
 Dimension  L*W*H=90*77*230mm
 Weight  600g
 Battery  Li-ion battery. 5000 times within 8 hours
 Lamp Life  5 years, more than 1.6 million measurements
 Display Screen  TFT 3.5inch, Capacitive Touch Screen
 Interface  USB/RS-232
 Data Memory  1000 Standards, 15000 Samples
 Operating Temperature   0~40℃(32~104°F)
 Storage temperature  -20~50℃(-4~122°F)

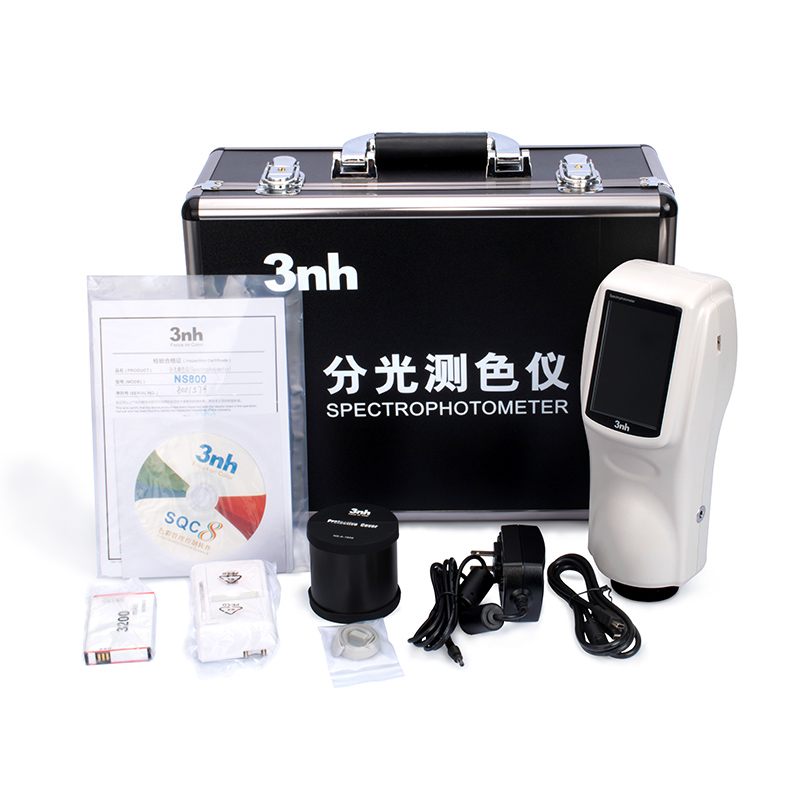

 Standard Accessory  Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM  (containing management software), Data Line, White and Black  Calibration Cavity, Protective Cover and Wrist Strap
 Optional Accessory  Micro Printer, Universal Test Compon
 Others

 Provide complete spectrum reflectance curve, Input L, a, b value  manually

 Notes  The specifications are subject to change without notice
