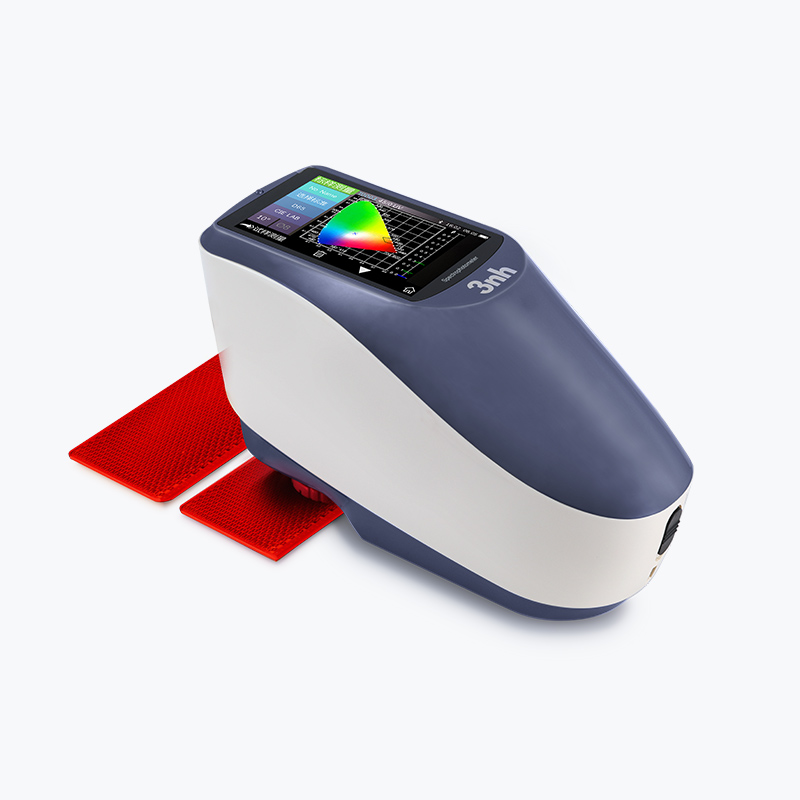

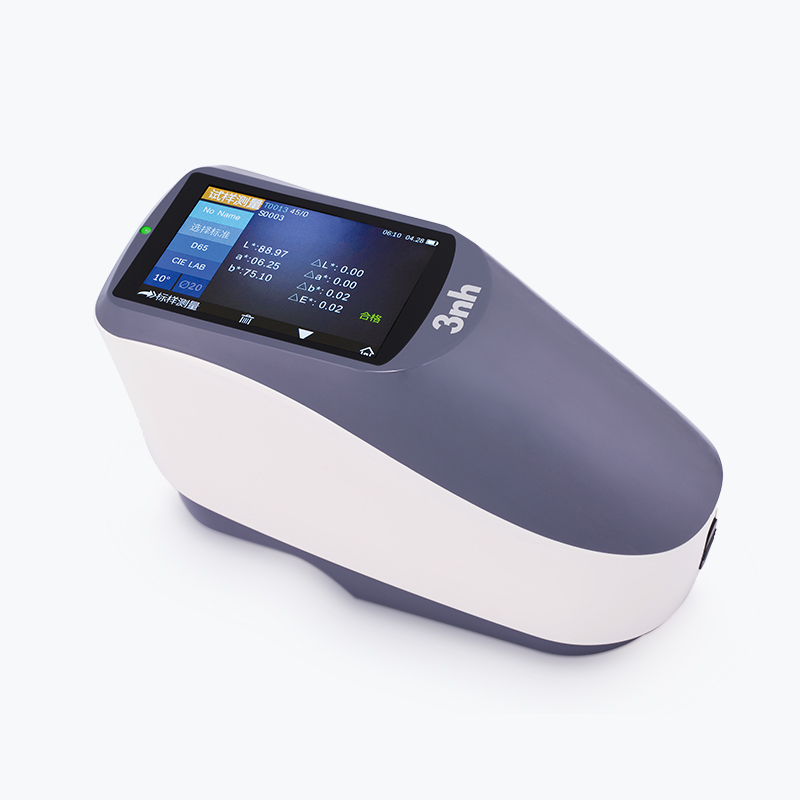

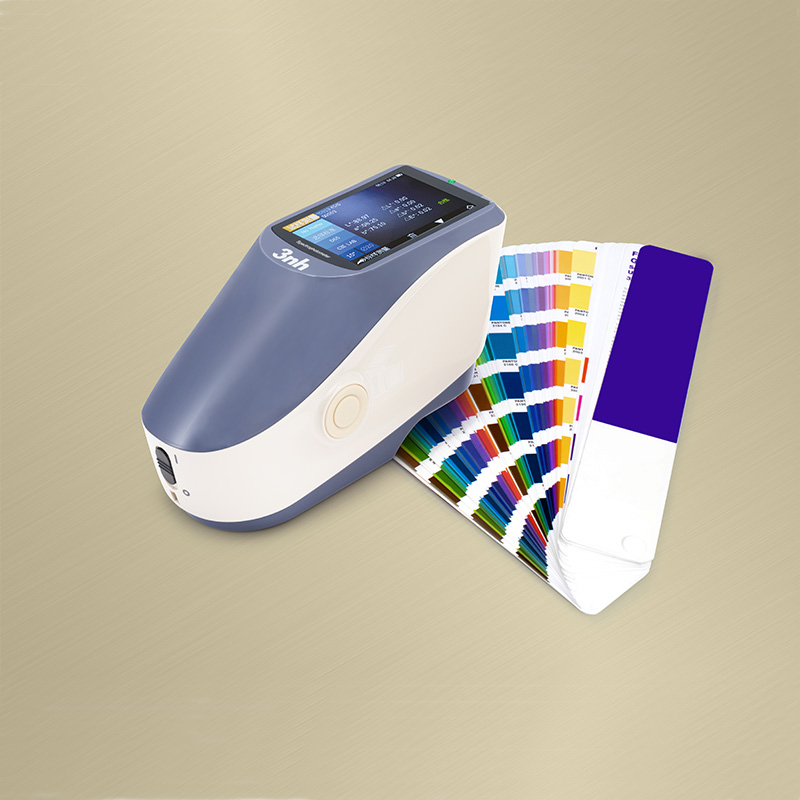

YS4560 Advanced Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements.


PRODUCT FEATURES


1.Beautiful appearance and perfect combination with ergonomic structure design;

2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833;

3.Adopt high-life and low-power combined LED light source, including UV/excluding UV;

4.Optional aperture2mm/4mm/8mm/20mm,adapt to more samples to be tested;

5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

7.USB port, widely useful;

8.Super stain-resistant and stable standard white calibration plate;

9.Large capacity storage space, over 30,000 measurement data;

10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

11.PC software has a powerful function extension.

12.Built-in standard polygon tolerance setting and specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;
