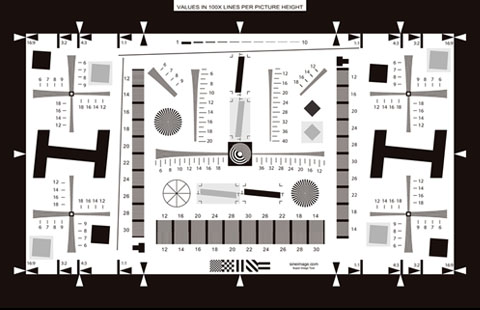

    ISO 12233 Enhanced digital camera resolution chart

Based on ISO 12233:2000, the QA-77 has all of the original features as the QA-72 plus several new ones, such as; Star Sector target; 5° slant bar; 5° dark gray square for SFR analysis as well as a greater resolution range, from 100 - 4000 Line Width / Pixel Height and hyperbolic wedges.

Common standard specifications


Product NO Multiple Size
NE-10-50A 0,5X 10x17.8 cm
NE-10-100A 1X 20x35.6 cm
NE-10-200A 2X 40x71.1 cm
NE-10-400A 4X 80x142.2 cm
NE-10-800A 8X 160x284.4 cm



Please Note

This chart does not conform to the updated ISO 12233:2014 standard. We recommend thePhotographic ISO 12233:2014 E-SFR chart for testing that does not specifically require the old chart.
