ITE Grayscale Chart I(Gamma = 0.45)
The YE083 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background(D=0.62) ....

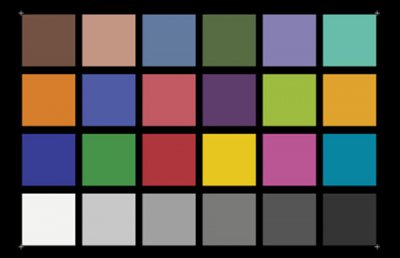

Color Rendition Chart (X-Rite ColorChecker)
The YE0188 was designed with respect of the well- known 'ColorChecker'. Used in photography film and TV the chart consists of 18 color patches and a 6-step gray scale....

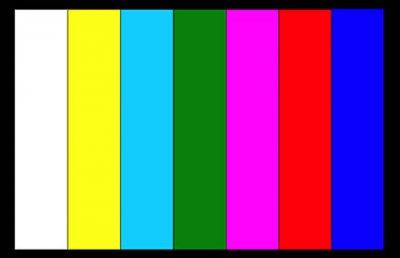

Color Bar Test Chart
The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red green and blue and the secondary colors cyan yellow and purple;...

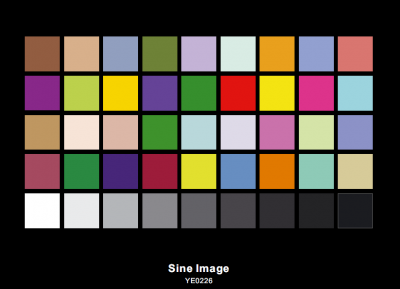

DTV Color Rendition Test Chart
The YE0226 is designed for the evaluation of the color rendition of HDTV cameras. The chart consists of 36 color patches and a 9-step gray scale. In addition to the primary and secondary colors the test chart contains mainly the colors whic...

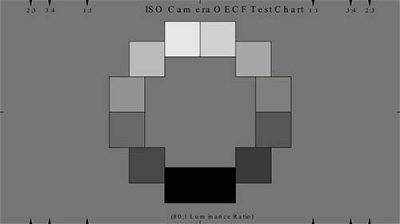

OECF Test Chart (ISO 14524)
The YE0197 is designed for evaluating the opto-electronic-conversion-function of a camera. The chart consists of a circular ordered 12-step-gray scale on a gray background. For measuring procedures see ISO 14524. step density (ISO) 20：1 d...
36-Patch Dynamic Range Test Chart
The YE0197 is designed for evaluating the opto-electronic-conversion-function of a camera. The chart consists of a circular ordered 12-step-gray scale on a gray background....
