  • Multi-angle spectrophotometer MS3006


  • LOADING IMAGES

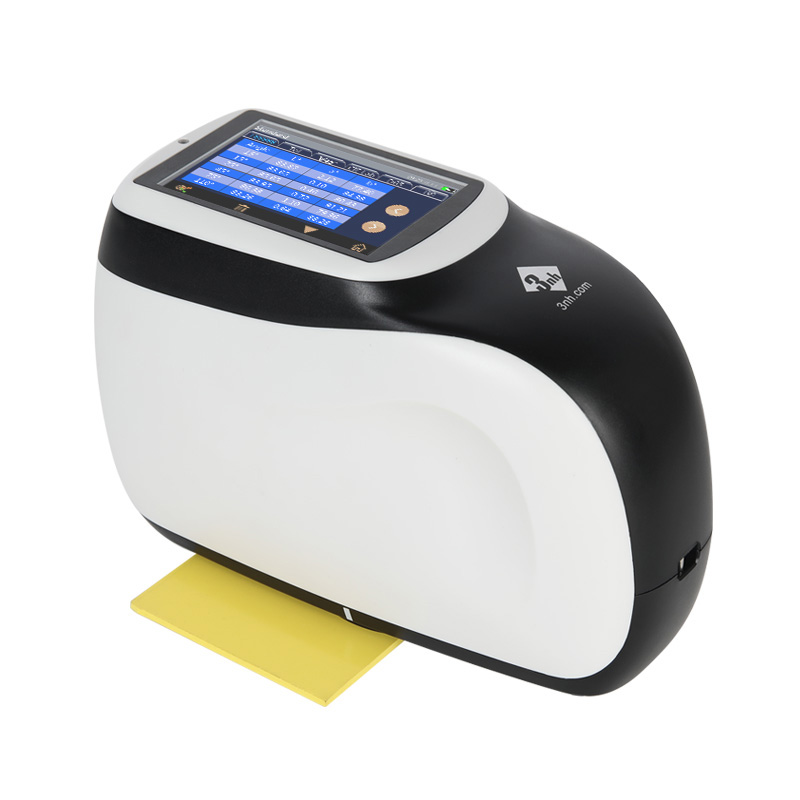

    Multi-angle spectrophotometer MS3006Multi-angle spectrophotometer MS3006Multi-angle spectrophotometer MS3006Multi-angle spectrophotometer MS3006Multi-angle spectrophotometer MS3006

MS3006 Multi-angle spectrophotometer adopts Industrial-grade MCU with 6 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3006 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3006 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

Technical characteristics

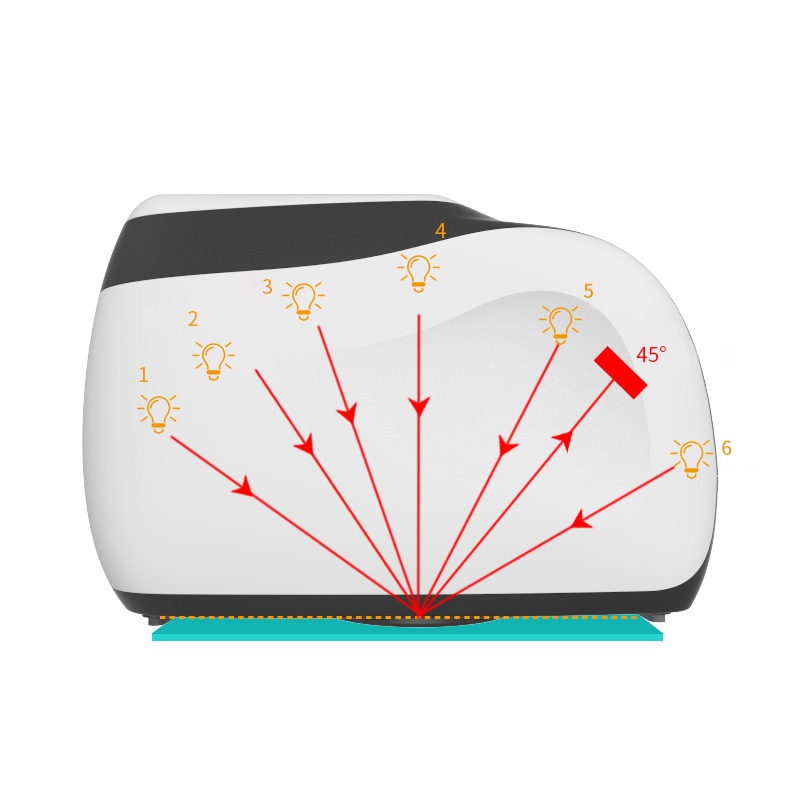

1. Multi-angle measurement

Adopt 6 illumination sources, 1 receivers to measure 6 measurement angles at the same time
11.jpg/

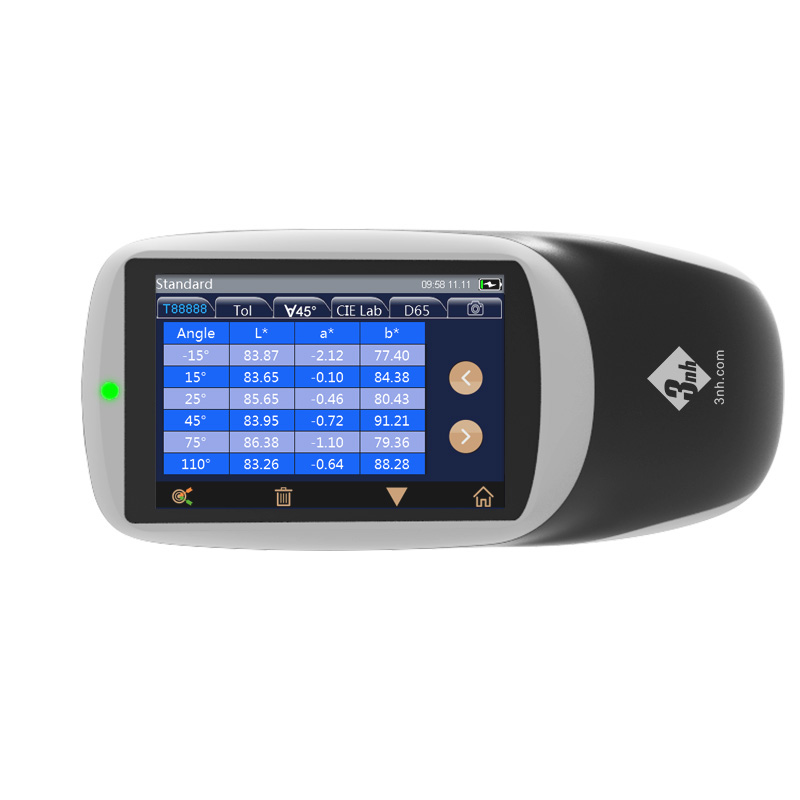

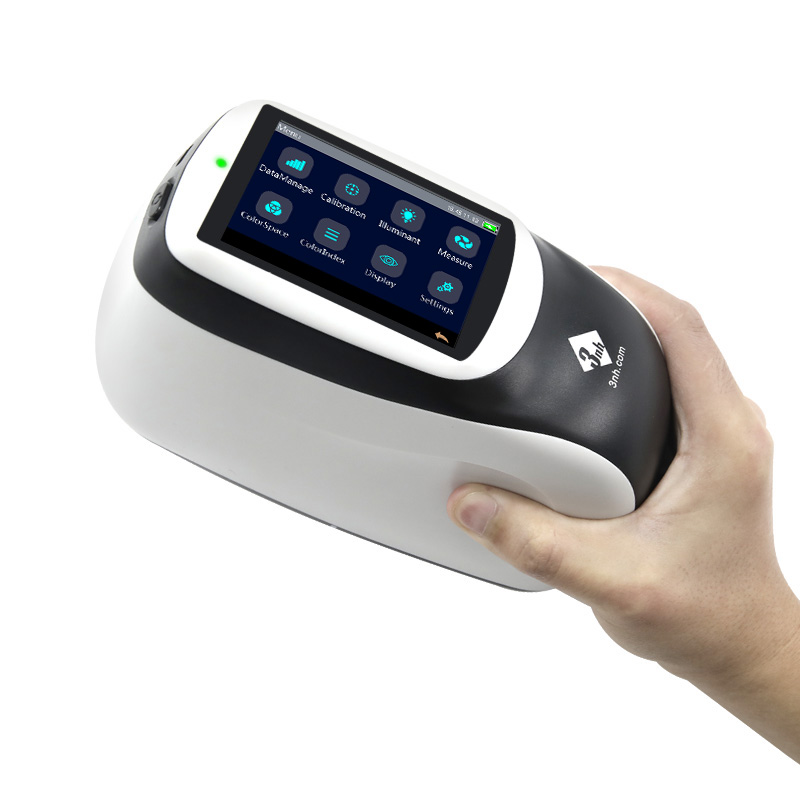

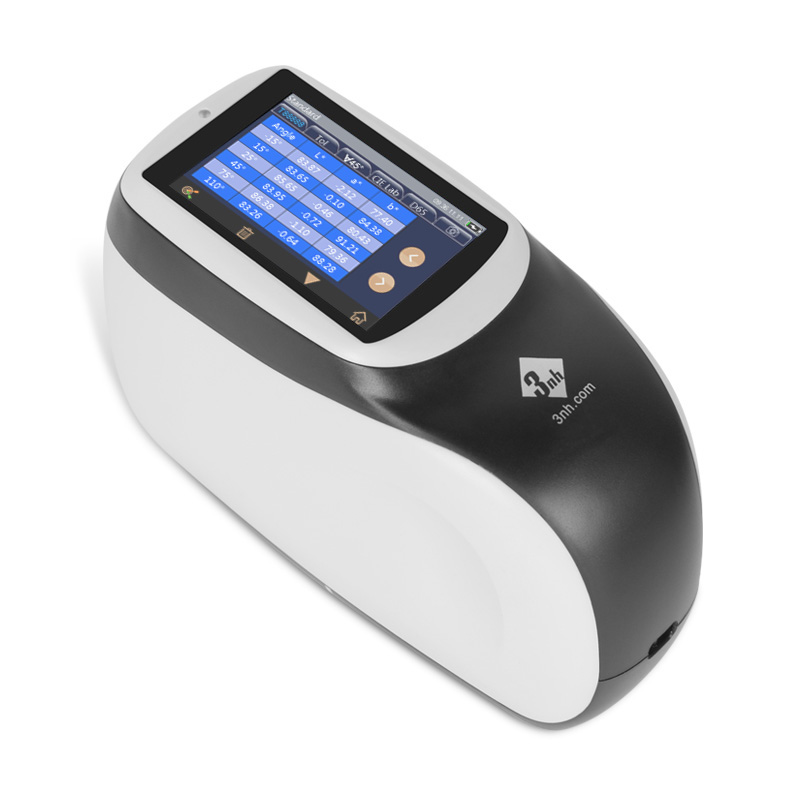

2. More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.
12.jpg/

3. Effect measurement discrimination function

Quickly distinguish the sample Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV), simple and effective quality inspection.
13.jpg/

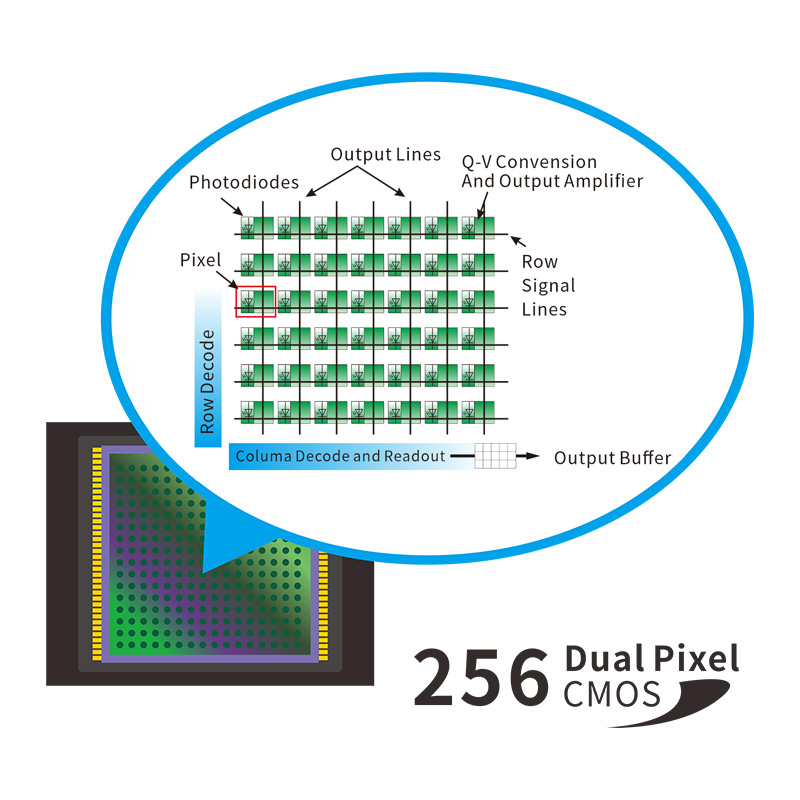

4. 256 Image Element Double Array CMOS Image Sensor

The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.
14.jpg/

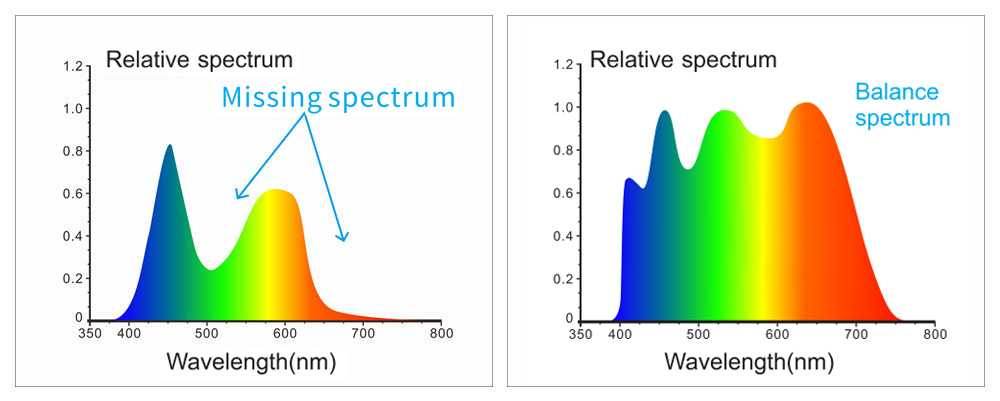

5. Adopt Full spectrum LED light source with blue enhancement

The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.
15.jpg/

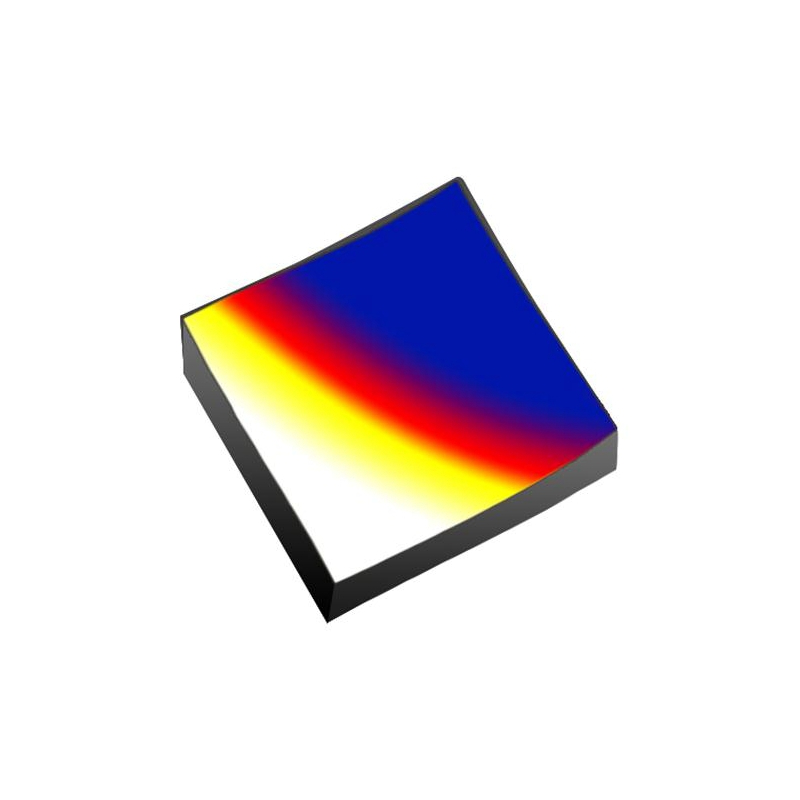

6. Concave grating spectrophotometric technology

Using concave grating spectrophotometric technology, with higher resolution, makes  color measurement more accurate.
16.png/

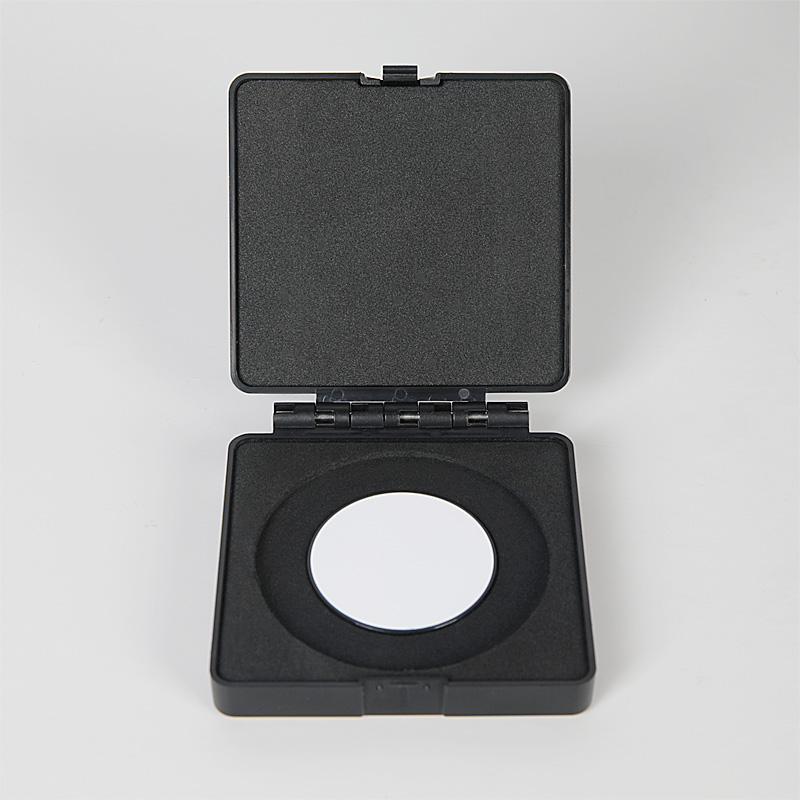

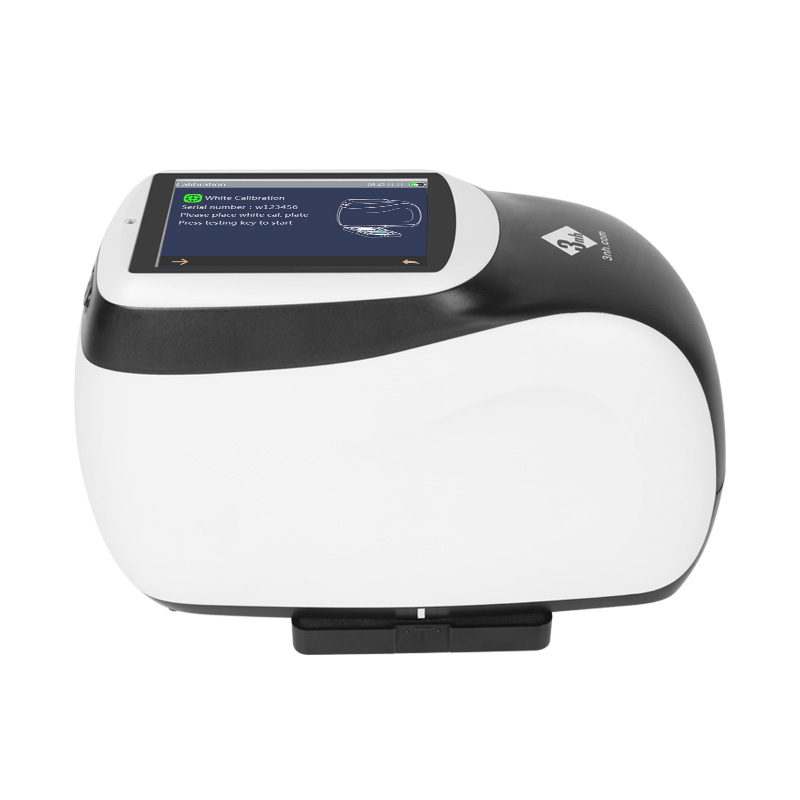

7. Professional-grade white board

Professional-grade white board, high hardness in the surface, stable optical performance

17.jpg/

8. Higher quality

Industrial grade real-time processing MCU,  Bluetooth 5.0 transferring more stable and reliable.
18.png/

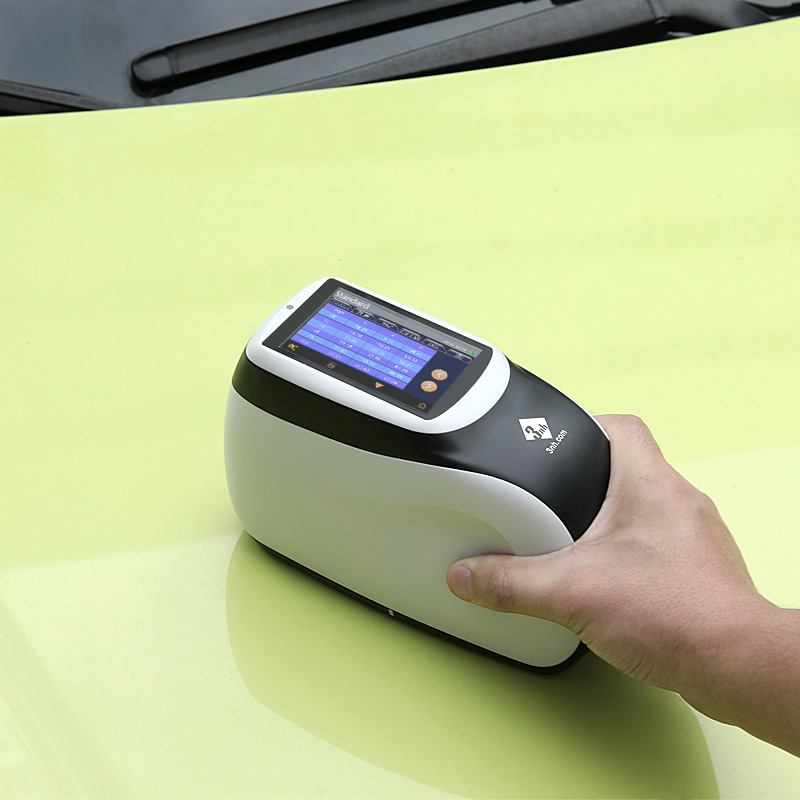

9. Ergonomics Novel and fashionable appearance design

The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.
19.jpg/

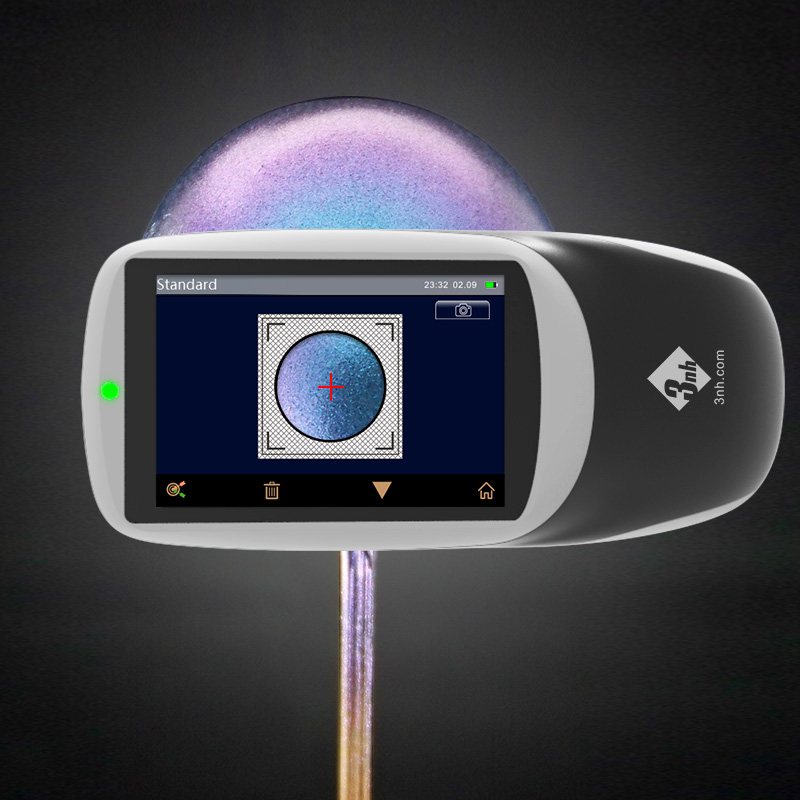

10. Color camera preview, can clearly observe the measured area

Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.
20.jpg/

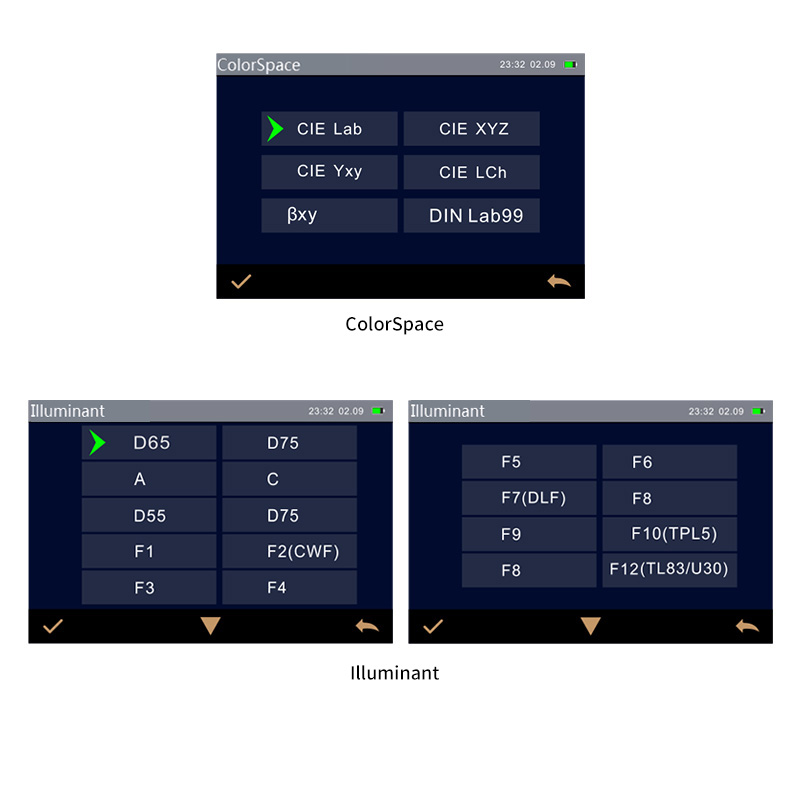

11. Multiple color measurement space, multiple observation light sources

Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.

21.jpg/

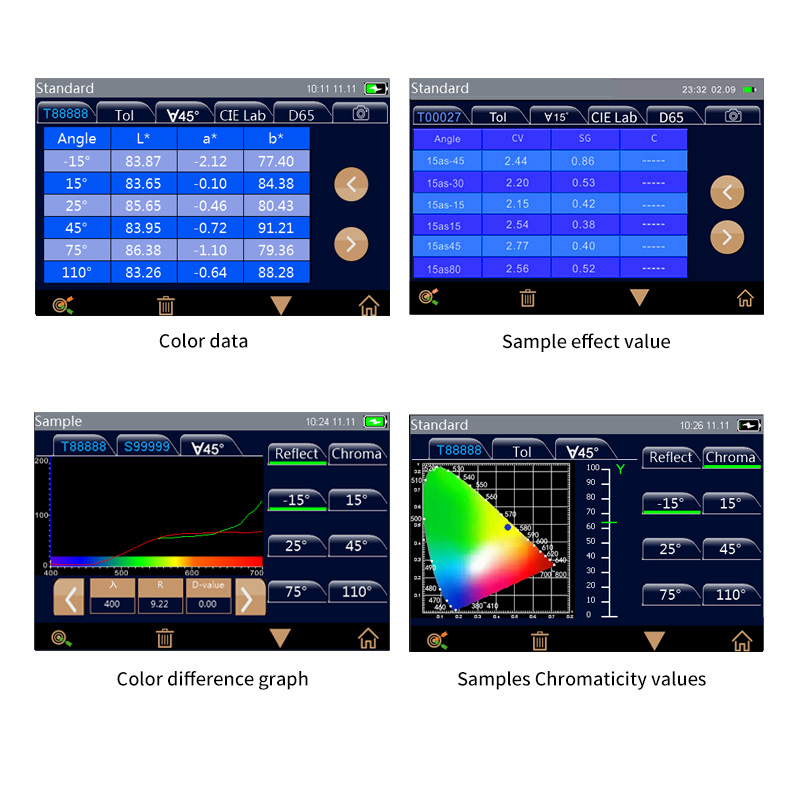

12. Easily analyze data

The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user's work efficiency.
22.jpg/

Technical parameters

Model MS3006
Measurement Geometry 6 measurement angles (6 illumination sources, 1 receivers)
Measure Angle 45° Receiver:
45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4  SAE J 1545
Application Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source Full spectrum LED light source with blue enhancement
Lamp Life 5 years, 3 million times measurements
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400nm-700nm
Wavelength Interval 10nm
Measurement Range 0~600%
Semiband Width 10nm
Measuring Aperture Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm)
Color Space CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175,color difference formulas of multiple car brands
Other Colorimetric Index Flop Index, Int-Em
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1 ,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30)
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time Approx. 1 second for one angle
Approx. 6 seconds for all angles(not including the effective color measuring time)
Repeatability Spectral reflectance:  Standard deviation within 0.08%
Chromaticity value:  ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error 0.2ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)
Effect Repeatability Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode Pressure sensing trigger, button trigger, software trigger
Measuring Mode Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode Color camera preview
Dimension L*W*H=195X83X128mm
Weight About 1Kg
Power lithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 5.0
Data Storage 1000 pcs Standards,4000 pcs Samples
Language Simplified Chinese, Traditional Chinese, English
Operating Environment 10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment -20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration Built-in white board parameters, external white board, black light trap, color board
Calibration Interval 4 hours,8 hours,24 hours,Startup calibration

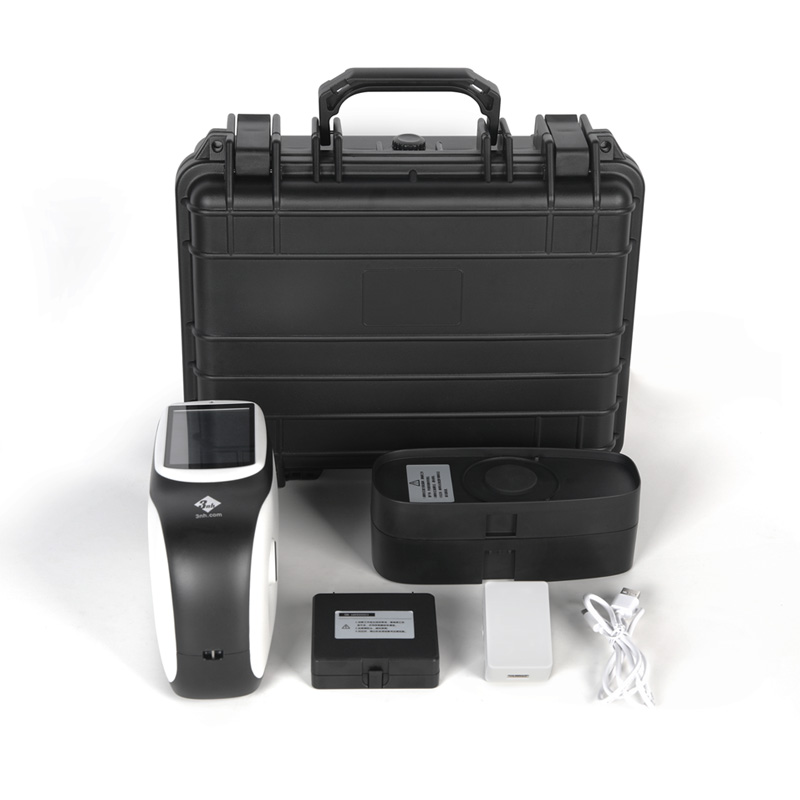

Standard accessories Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory Micro-printer
Notes Technical parameters are for reference only, subject to actual sales products.
