Functional Features

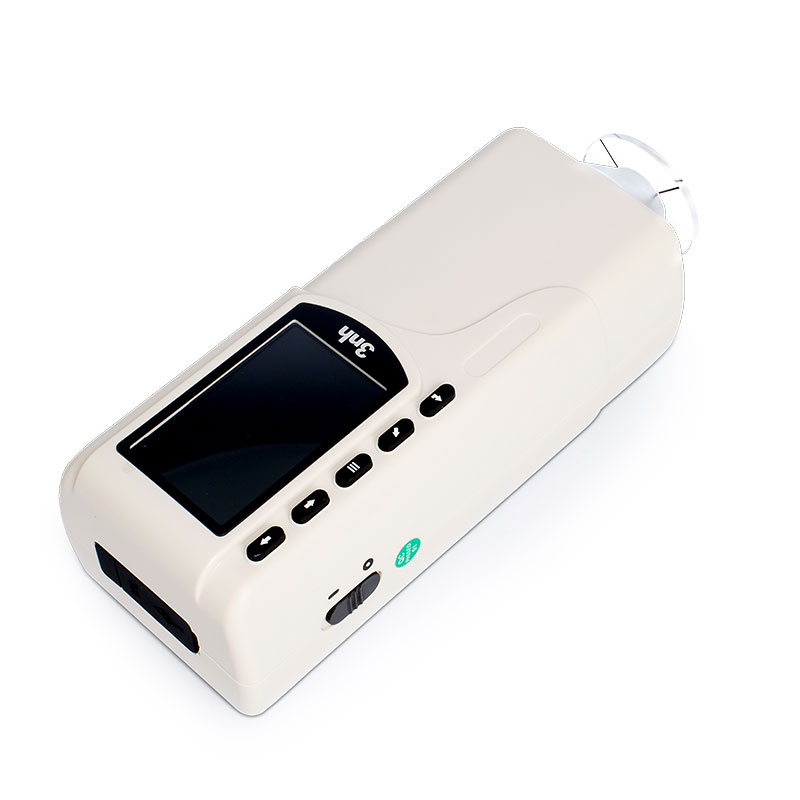

NR145 Precision Colorimeter

3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode.



NR145 Precision Colorimeter

















Product Advantages


1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
2. Double Locating: Illuminating locating and precise cross locating.
3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
4. New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
5. 8mm Measuring Aperture.
6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
7. Configure CQCS3 software. Connect PC computer to realize more functions.
8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

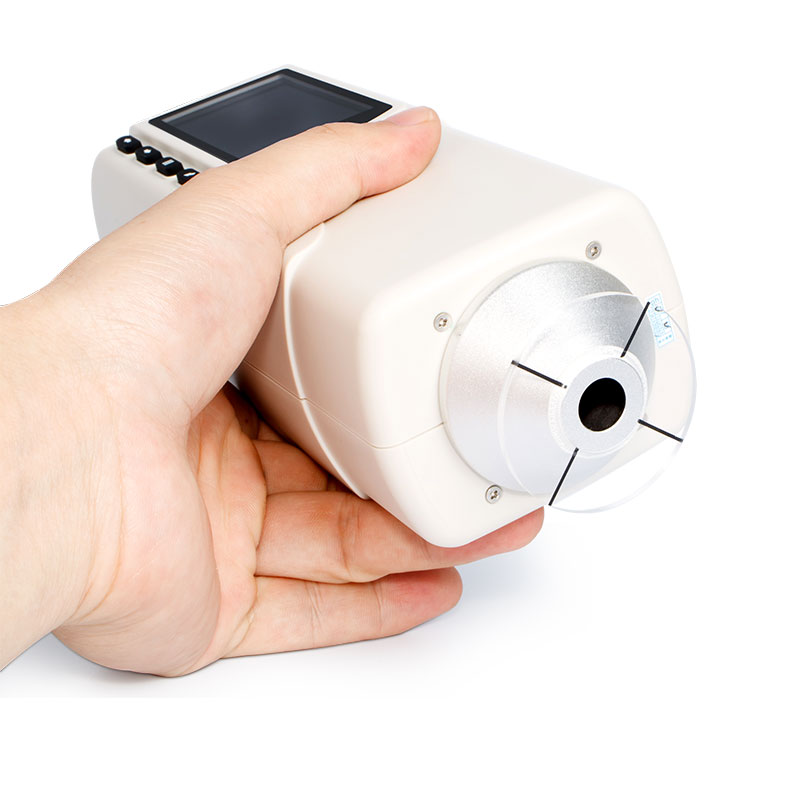

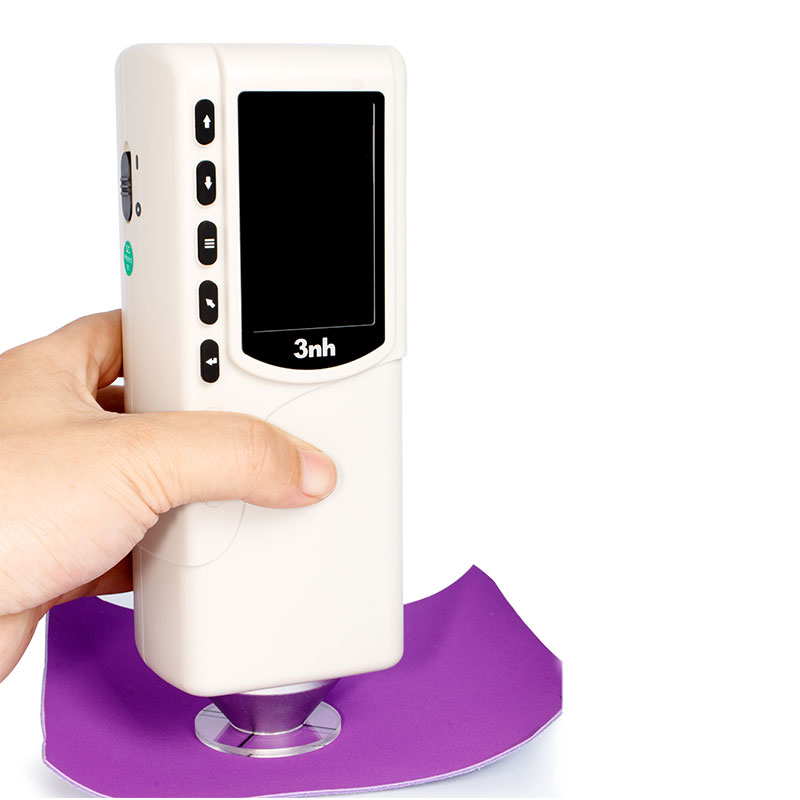

9. Hand-head structure: small and convenient; make the measurement easier.
10.  Exquisite appearance: adopts traditional and fashionable aesthetic designs.

NR145 Precision Colorimeter

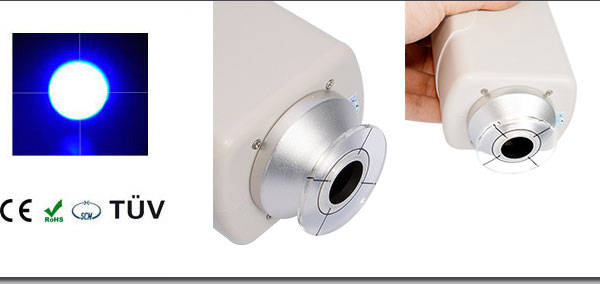

Illumination Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face

Technical Specifications

3nh
NR145
Illuminating/Viewing Geometry
45°/0°
Measuring Aperture
Φ8mm
Measurement End-face
Large stable end face and small concave-convex end face
Detector
Silicon photoelectric diode
Locating
Illuminating Locating/Cross Locating
Color Space
CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula
△E*ab △L*a*b* △E*C*h*
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each Equipment
≤0.80ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight
500g
Dimension
205×67×80 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
5 years, more than 1.6 million measurements
Charging Time
The first charging time is 8 hours--100% electricity
PC Software
CQCS3 Software
Printer (optional)
Miniature thermal printer
