    NR200 Precision ColorimeterNR200 Precision ColorimeterNR200 Precision ColorimeterNR200 Precision Colorimeter

Colorimeter

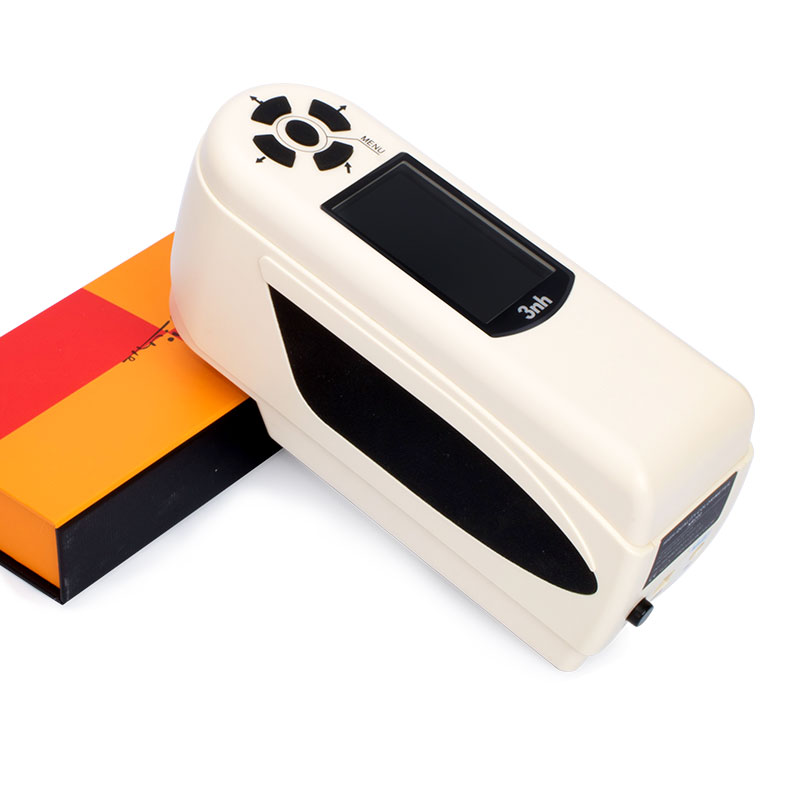

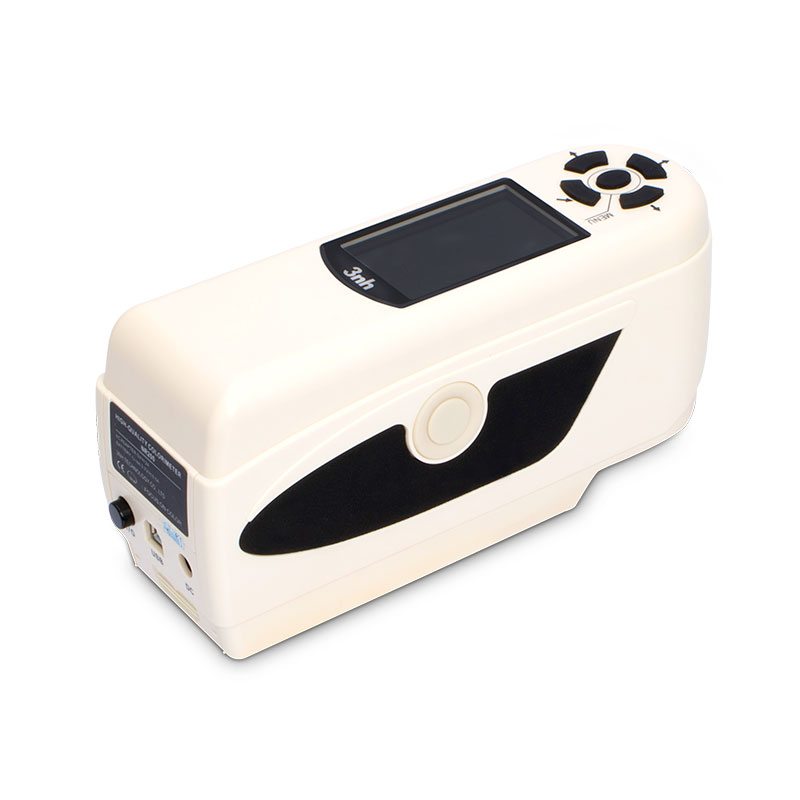

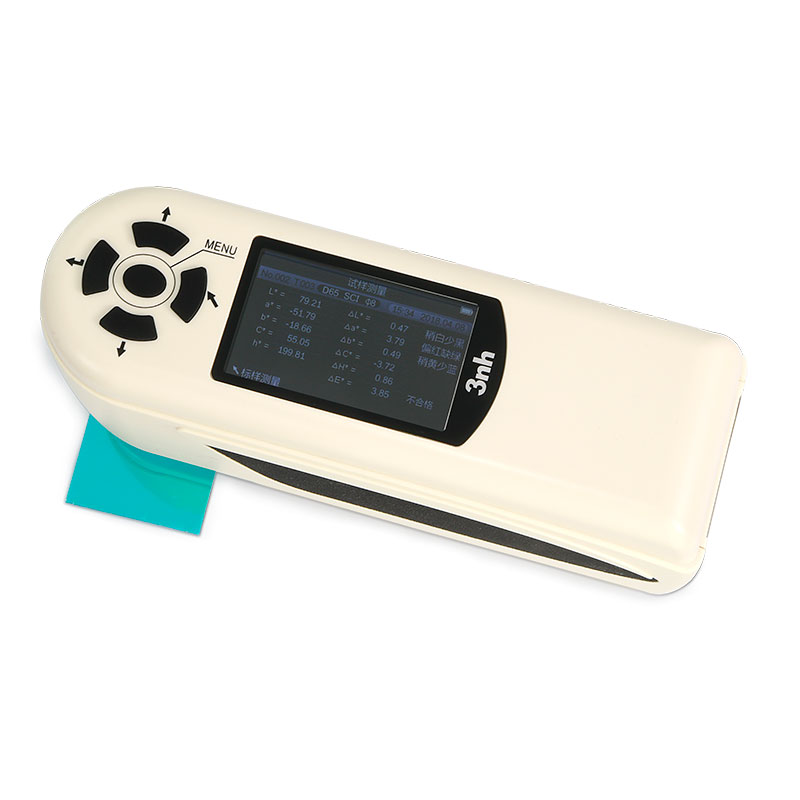

NR 200 High-Quality Colorimeter




High-end brands of domestic colorimeter

NR200 is another mainstream brand colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

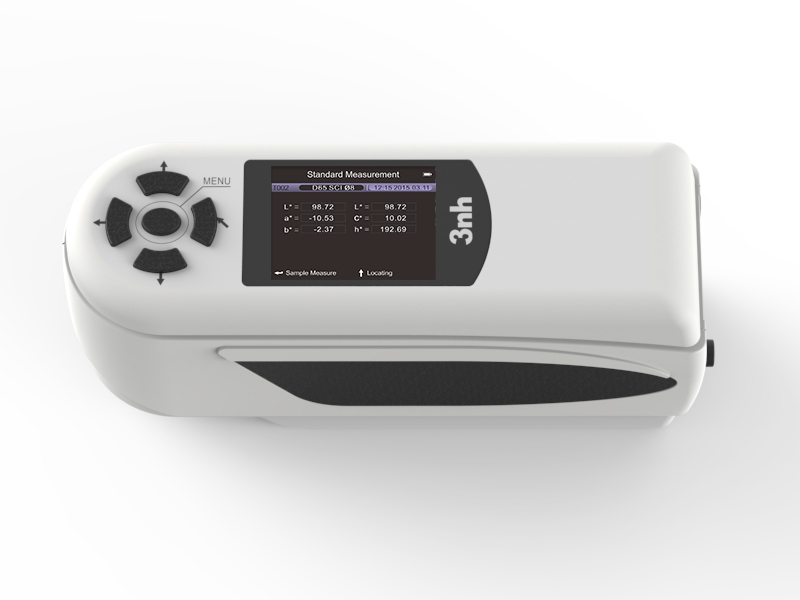

1. Leading Humanity Design and Convenient Operation
One-touch access to measurement interface

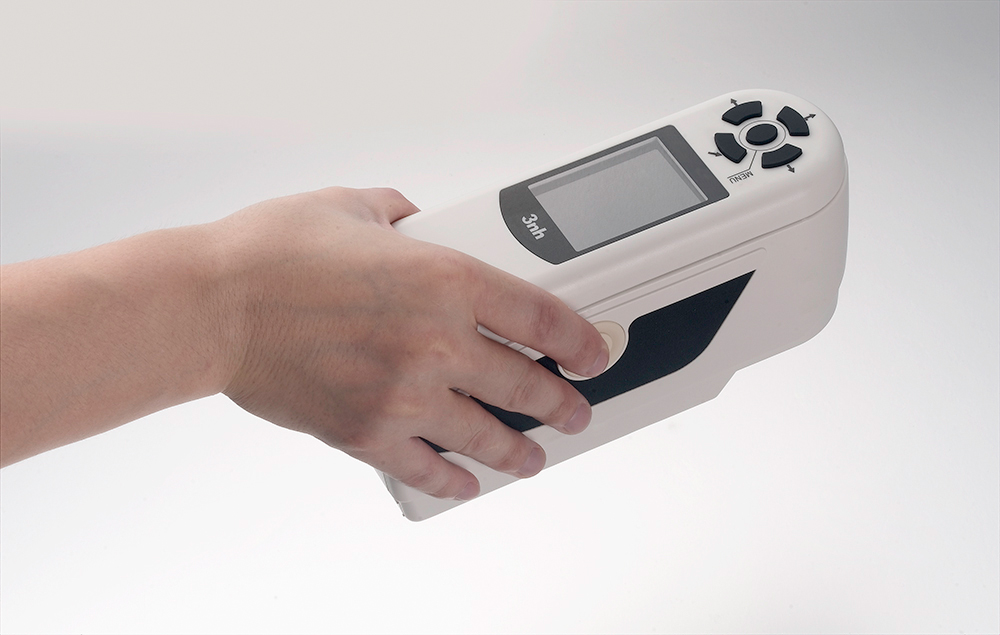

Structure design in line with ergonomics
East-to-use operating interface

Leading Humanity Design and Convenient Operation

2. Stable Measurement Performance
The repeatability △E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.

Stable Measurement Performance

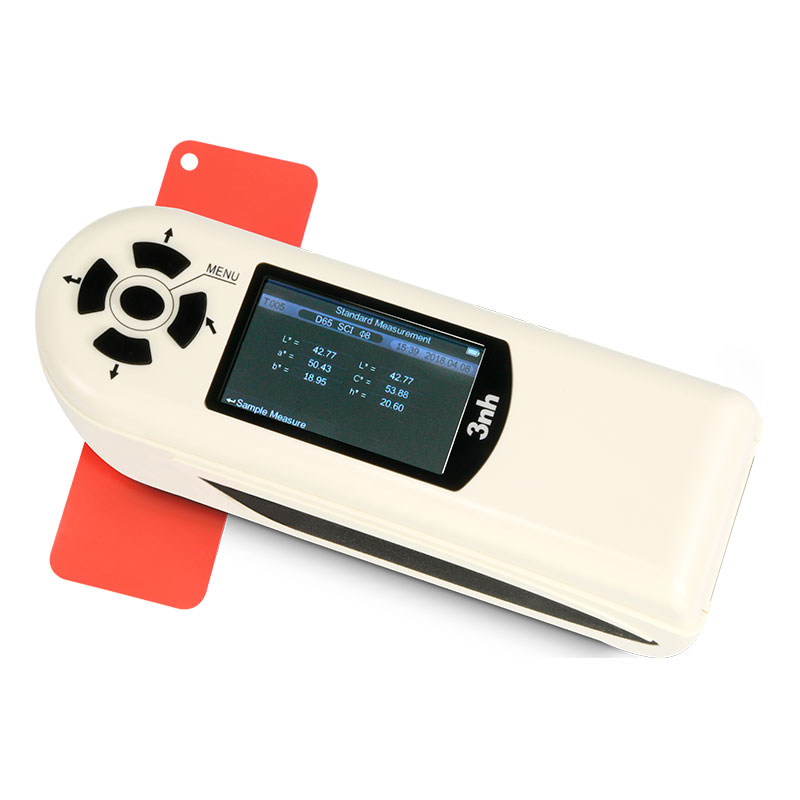

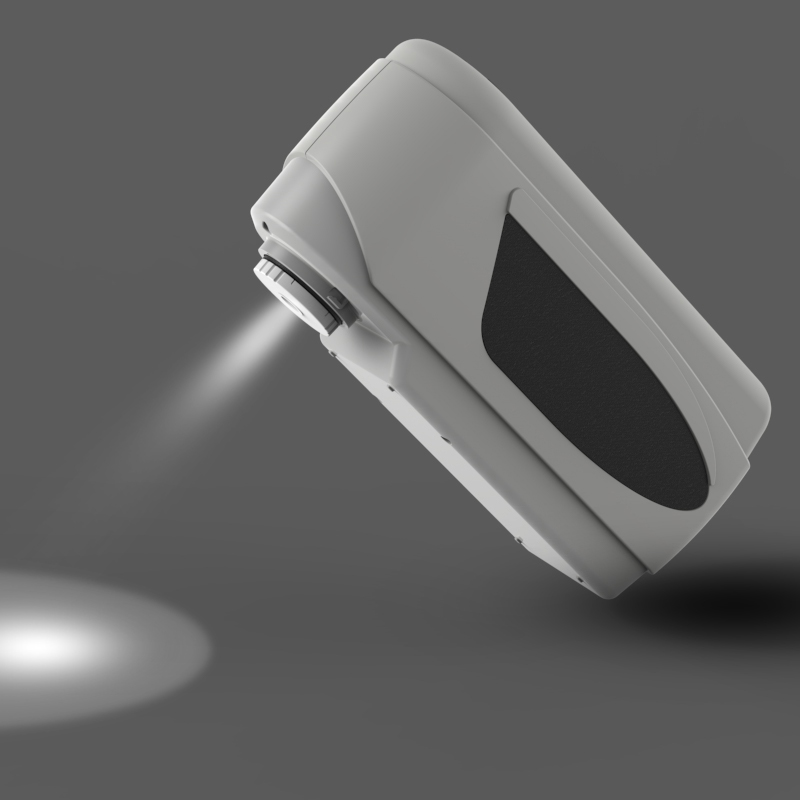

3. Convenient and Fast Locating
Illumination locating is a fast, simple and convenient locating which created by 3nh.

Convenient and Fast Locating

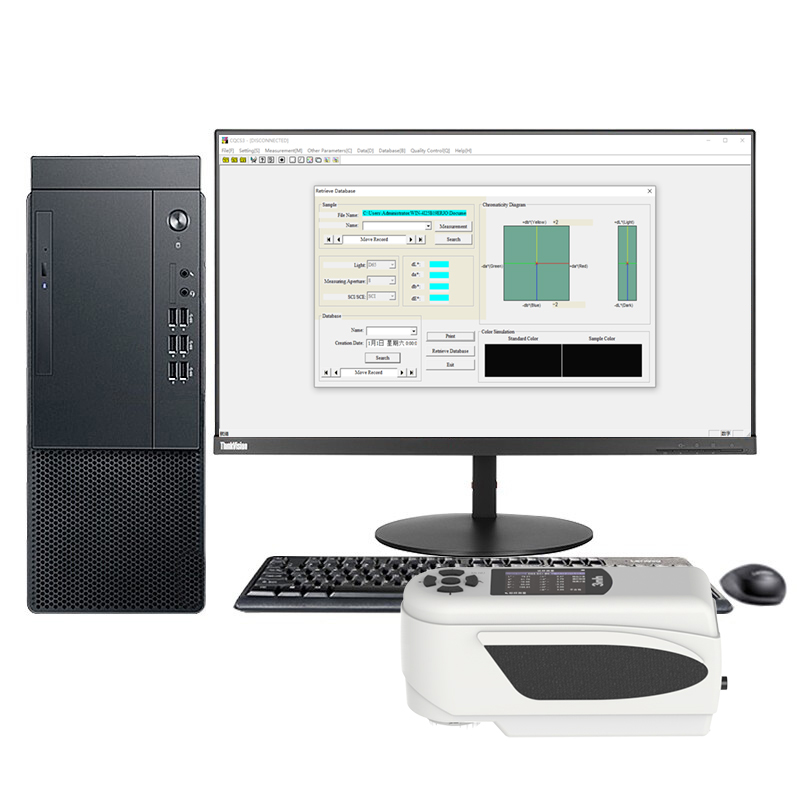

4. PC Software—Realize More Function Expansion
3nh has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

PC Software—Realize More Function Expansion

5. Advanced Power Management Design
3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.

Advanced Power Management Design


NR200 Specifications:

Illuminating/Viewing Geometry
8/d
Measuring Aperture
Φ8mm
Detector
Silicon photoelectric diode
Color Space
CIEL*a*b*C*h* CIEL*a*b*
Color Difference Formula
△E*ab △L*a*b △E*C*h
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each Equipment
≤0.50ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight
500g
Dimension
205×70×100 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
3 years, more than 1 million measurements
Charging Time
2 hours (First time 8 hours--100% electricity)
Measurement Times Before Recharging
More than 3000 times
Operating Temperature/Humidity Range
-10~40℃, relative humidity 0~85% with no condensation
Data Interface
USB


Optional Accessory
Miniature thermal printer, Powder Test Box
