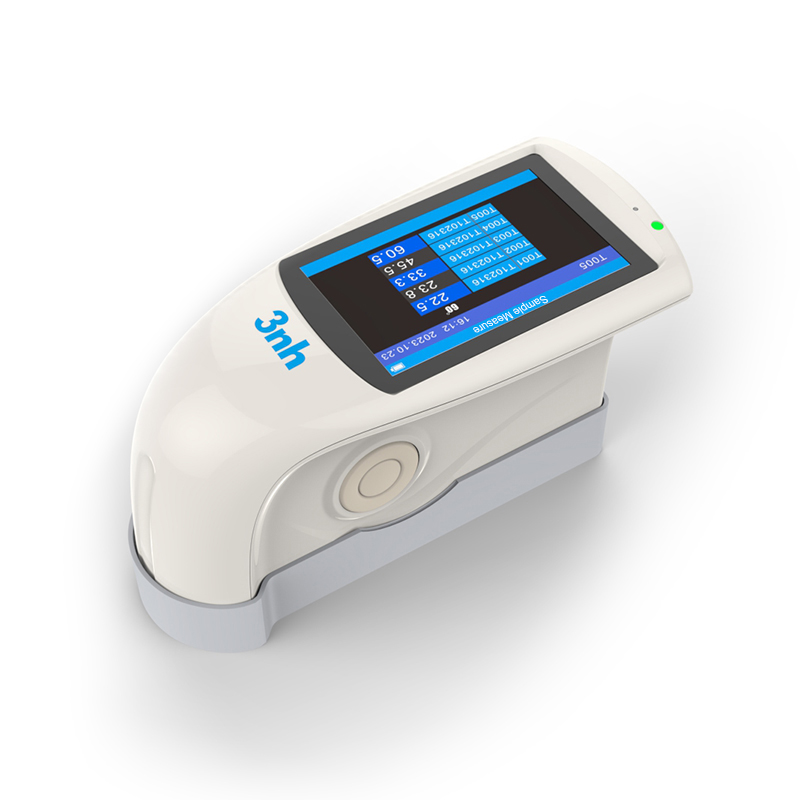

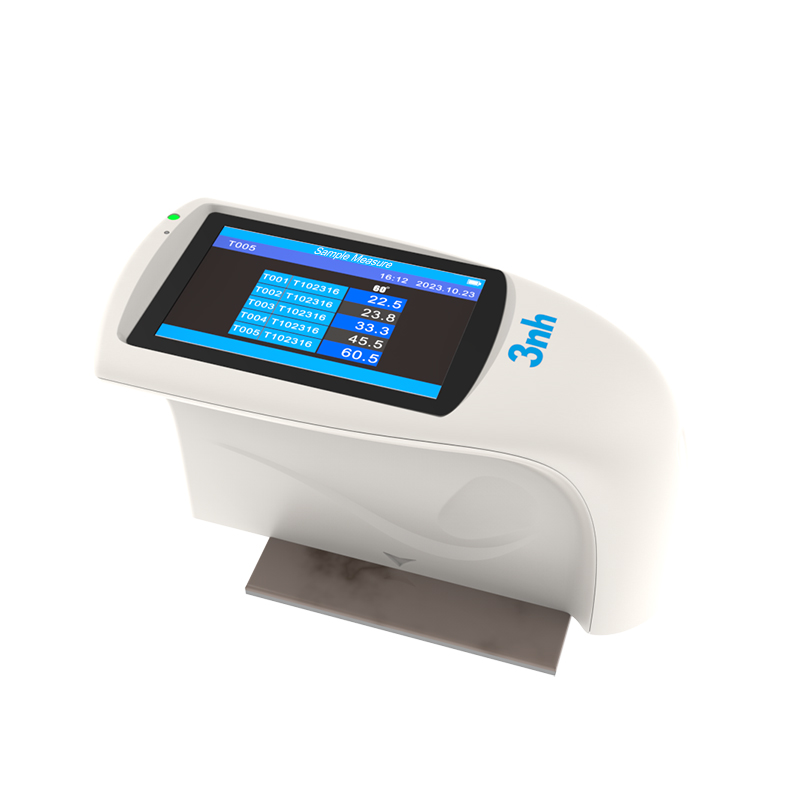

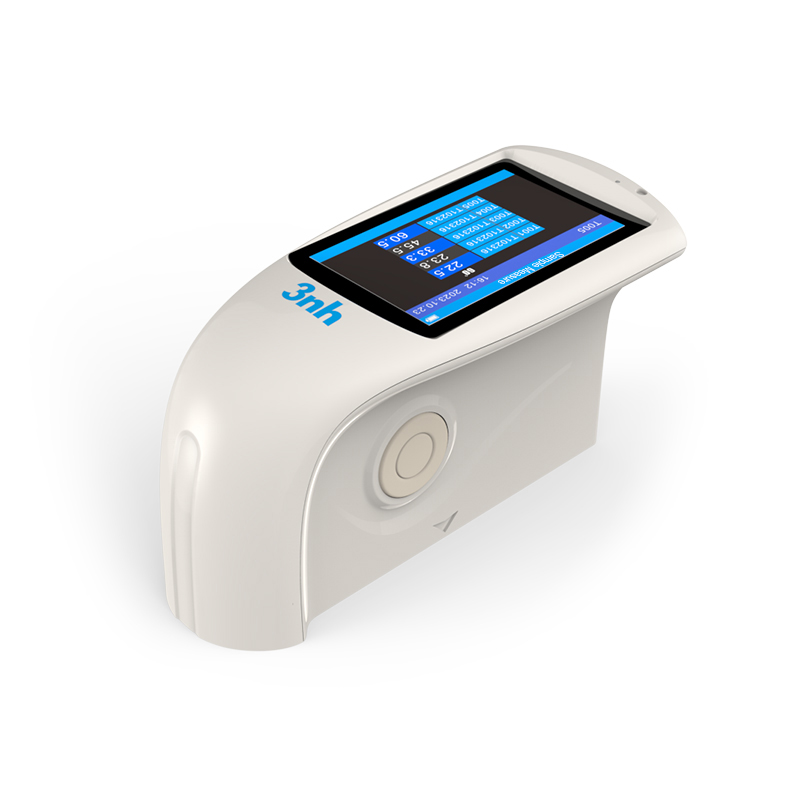

    HG60S Economic Gloss MeterHG60S Economic Gloss MeterHG60S Economic Gloss MeterHG60S Economic Gloss MeterHG60S Economic Gloss Meter

HG60S gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457.


HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products, marble, granite, vitrified polished tile, pottery brick and porcelain, plastic, paper, hardware industries, etc.



Features:


  1. 60° angle for semi gloss

    1.3.5英寸屏

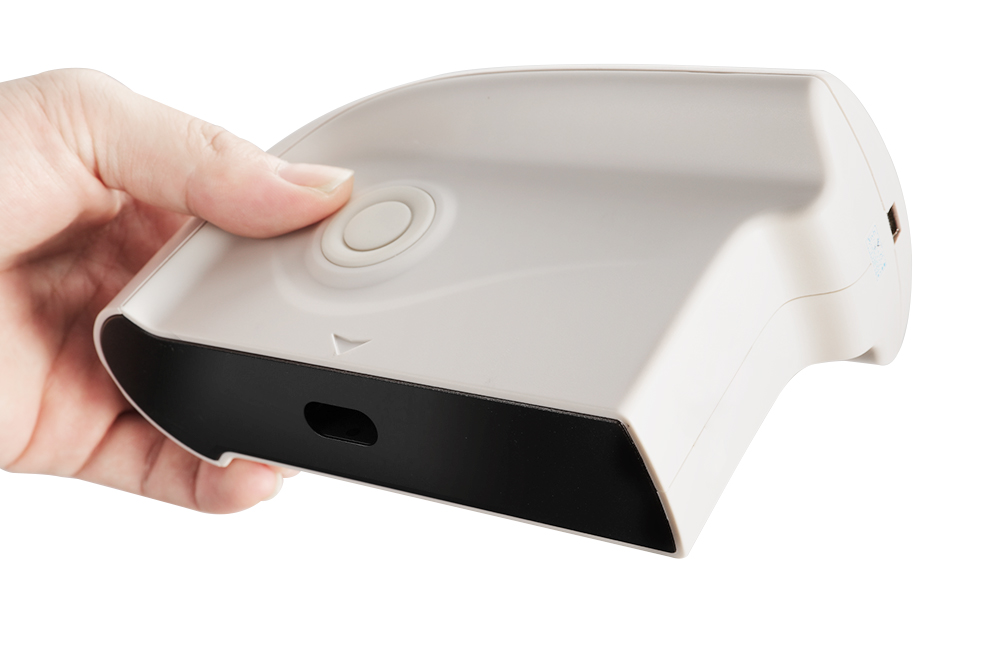

2. Concise appearance, feel good

2.大气外观

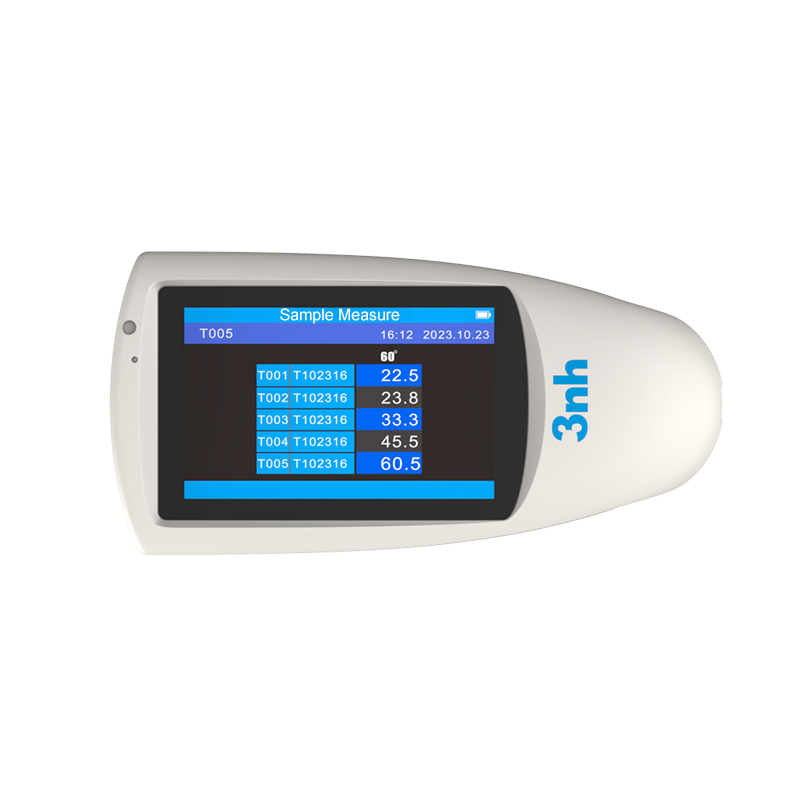

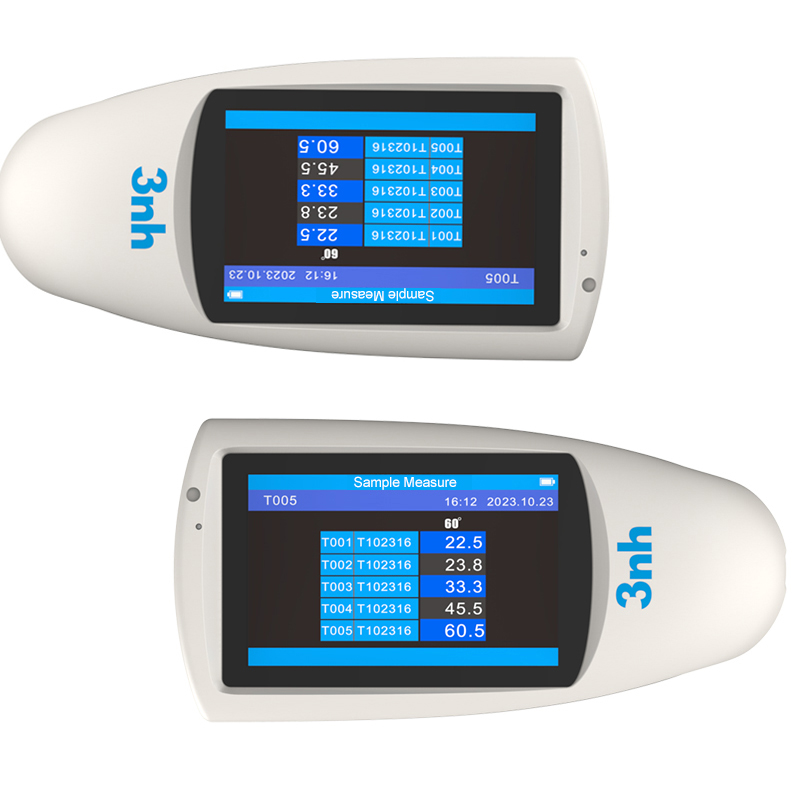

3. Display 3 sets of measurement data, good for comparison

3.方便对比

4. Built-in lithium ion rechargeable battery

4.充电电池

5. Basic model measurement can meet basic glossiness testing requirements

5.灵活开机校准

6. One button for all angles measurement at the same location

6高硬件配置

7. Comply with international standards

7符合标准.

8. Stable performance, easy to read data.

8.数据易读




Specifications:


HG60S Economic Gloss Meter
Model: HG60S
Measuring Angle 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 9x15
Measuring Range 0~200GU
Division Value 1GU
Measurement Range
Repeatability
Reproducibility
0-200GU          ±1GU           ± 1GU
Measurement Standard Confirm with JJG696 second class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software /
Operation Temperature  0~40℃(32~104°F)
Storage Temperature  -20~50℃(-4~122°F)
Humidity<85% relative humidity,  no condensation

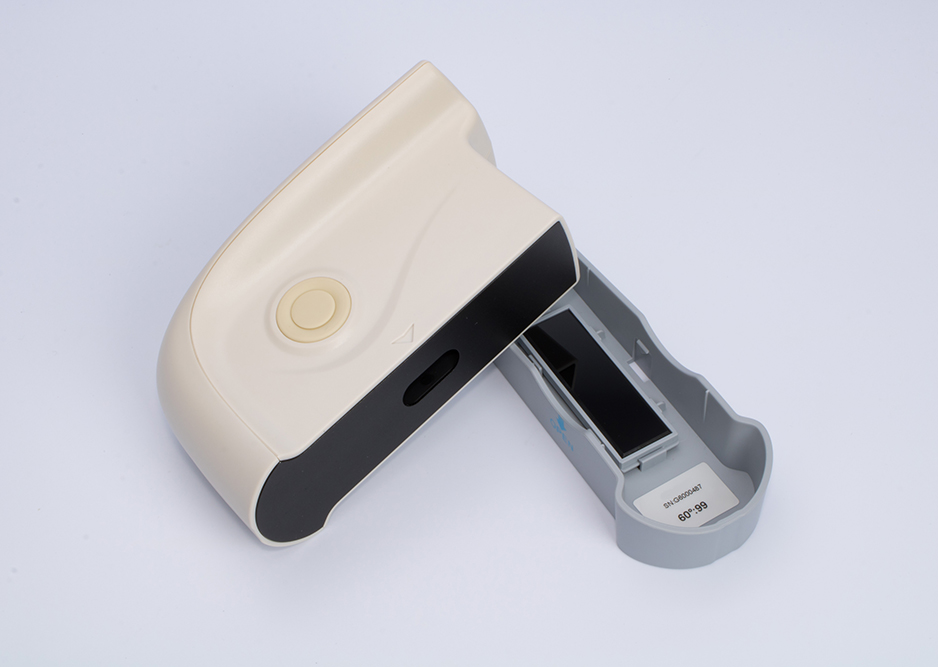

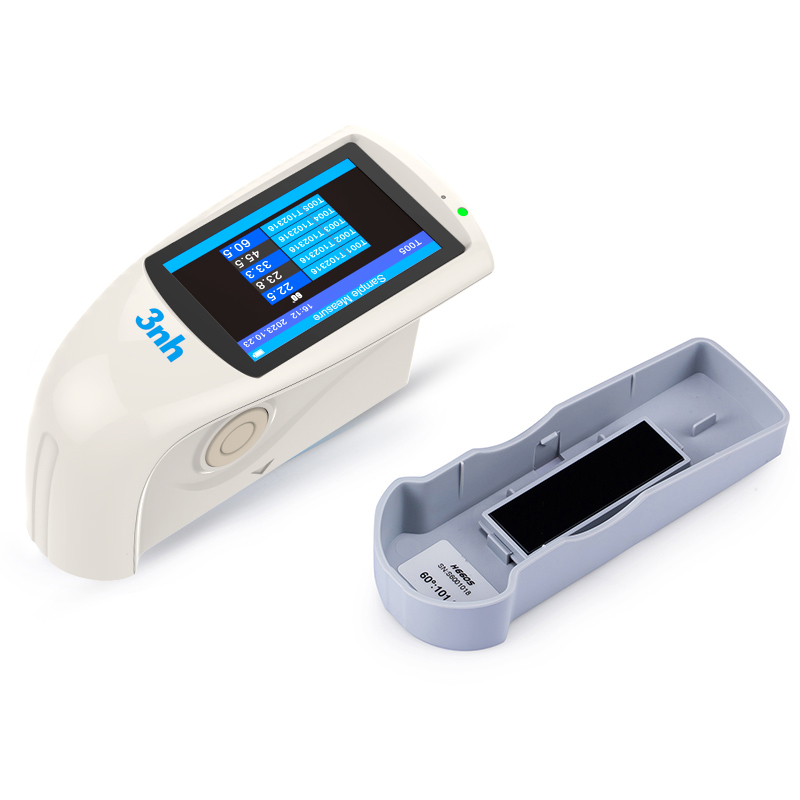

Standard Accessories Power Adapter, USB cable, User Manual, Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.
