  • NHG60M Small Aperture Gloss Meter


  • LOADING IMAGES

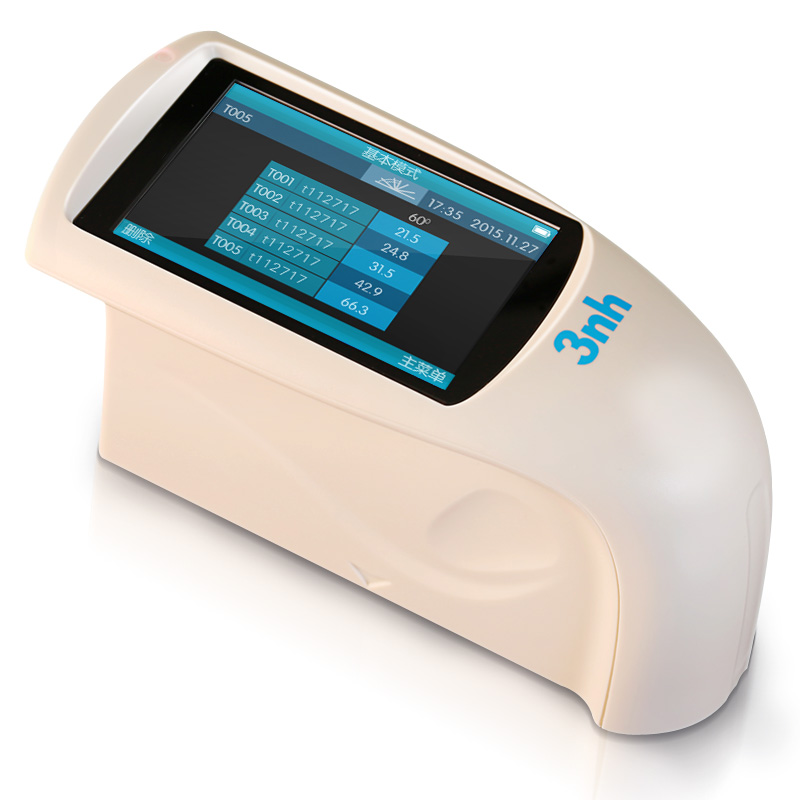

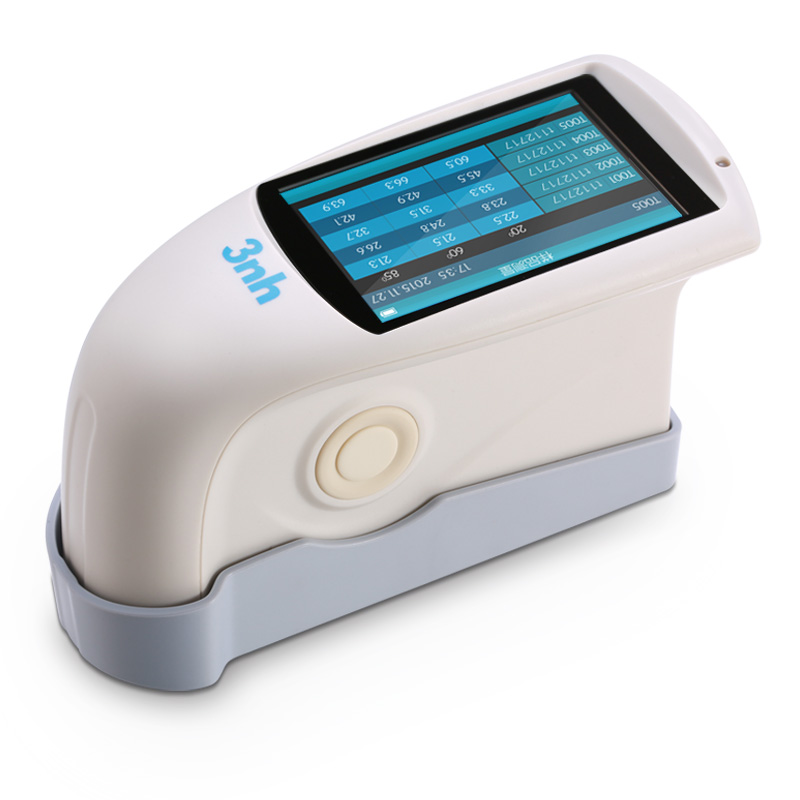

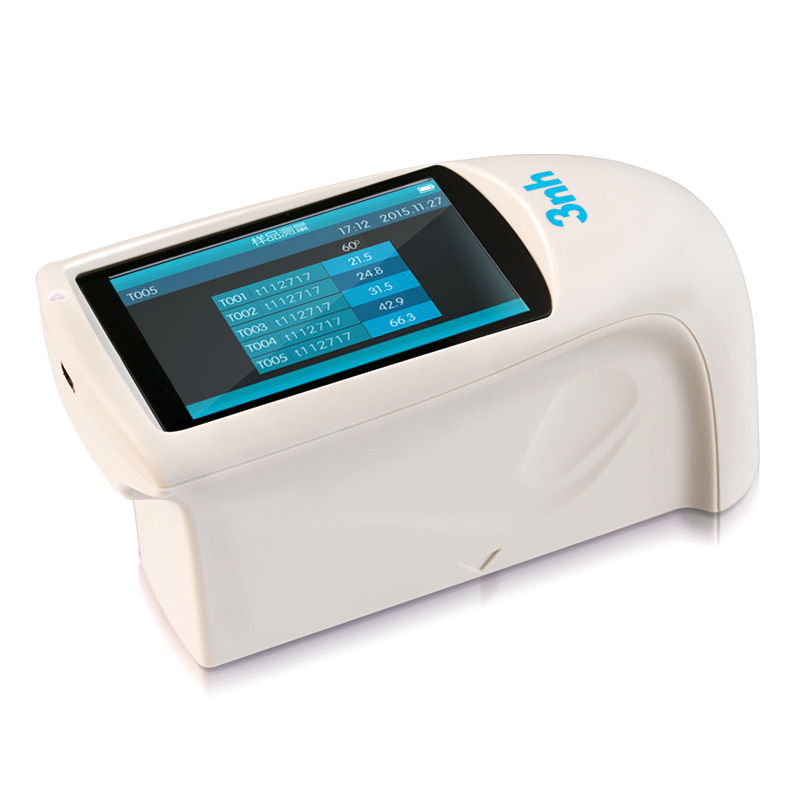

    NHG60M Small Aperture Gloss MeterNHG60M Small Aperture Gloss MeterNHG60M Small Aperture Gloss Meter

NHG60M micro aperture gloss meter adopts small aperture 2*4mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Features:



1. Small aperture: 2*4mm
2. 60° angle for semi gloss
3. Display 5 sets of measurement data, good for comparison
4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
5. Continuous mode to check uniformity over large areas
6. Connect to PC, more extend functions
7. Input gloss value manually
8. Large touch screen operation, easy to use
9. Beauty appearance, good man-machine communication interface
10. Powerful functions to meet many different requirements
11. Large storage to save over 5000 data
12. Built-in lithium ion rechargeable battery.



Specifications:



NHG60M Micro Aperture Gloss Meter
Model
NHG60M
Measure Angle
60°
Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Measuring Area (mm)
2*4
Measurement Range
0~1000GU
Division Value
0.1GU
Measurement Range                                 Repeatability
Reproducibility
0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU
Measurement Standard
Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding
Corresponding with CIE 1931(2°) under CIE C light source
Errors
±1.5 , ± 1.5%
Measuring Time
0.5s
Dimension
L*W*H : 160mm*75mm*90mm
Weight
350g
Language
Chinese/English
Battery
3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen
TFT 3.5 inch, capacitive touch screen
Interface
USB/RS-232
Data Save
Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software
GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature
0~40℃(32~104°F)
Storage Temperature
 -20~50℃(-4~122°F)
Humidity
<85% relative humidity, no condensation
Standard Accessories
Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories
Miniature Printer
Note
The specifications are subject to change without notice.
