  • YG60 60°Accurate Gloss Meter


  • LOADING IMAGES

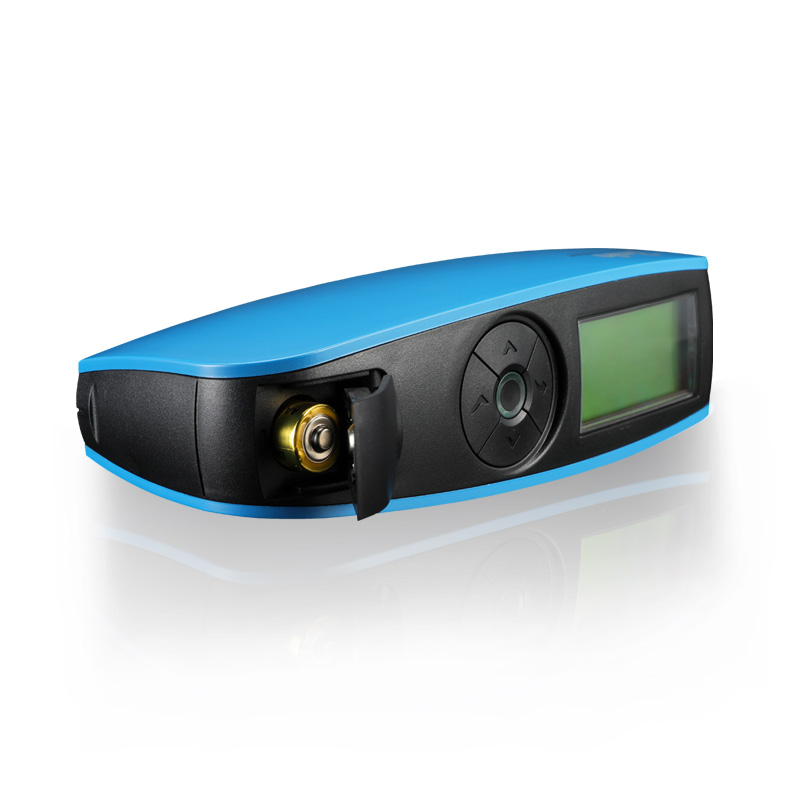

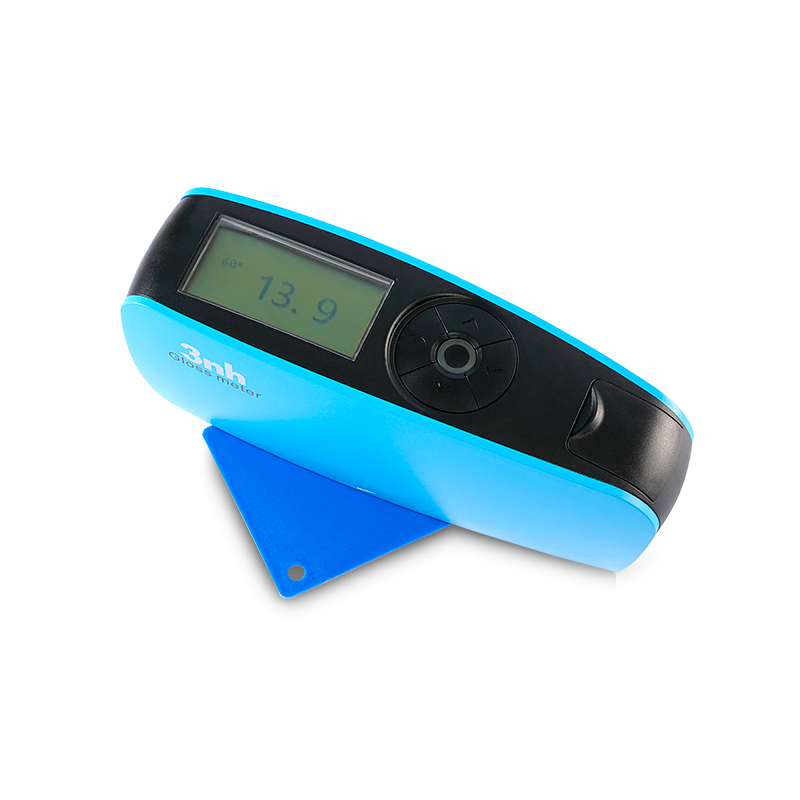

    YG60 60°Accurate Gloss MeterYG60 60°Accurate Gloss MeterYG60 60°Accurate Gloss Meter

YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first  grade requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.


Features:


1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813, ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.


Application:


Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.


Specifications:


Model YG60 60°Accurate Gloss Meter
Measuring Angle 60°
Measuring Area 60°: 0-1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~1000GU : ±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500;
           Continuous mode : 10000;
           QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB & Bluetooth 2.1 version
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range< 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference
